Band Pass Filter 1920 to 1980MHz 5o26125550

Band Pass Filter 1920 ~ 1980MHz

Application

▶Wireless communication system.

▶Audio processing, image and data acquisition.

▶Biomedical signal processing.

▶Radar and sensors.

▶It supports a one-year standard warranty.

RF Characteristics

Part Number
Pass Band
(MHz)
Insertion Loss
Max (dB)
Ripple in-band Max(dB)
Return Loss
Min (dB)
Rejection
IMD3
Connector
Type
5o261255501920T1980NKNJ
1920~1980
1.2
1.0
18
60dB@DC~1900MHz
60dB@2000~3000MHz
50dB@3000~5500MHz
-150dBc@2x43dBm
N Female to N Male
5o261255501920T1980NK
1920~1980
1.2
1.0
18
60dB@DC~1900MHz
60dB@2000~3000MHz
50dB@3000~5500MHz
-150dBc@2x43dBm
N Female
5o261255501920T1980SK
1920~1980
1.2
1.0
18
60dB@DC~1900MHz
60dB@2000~3000MHz
50dB@3000~5500MHz
-130dBc@2x43dBm
SMA Female
Basic SpeciKications

Dimension	1255539mm	Impedance	50Ω
Power	100W	Operating Temperature	-10 ~ +55℃
Appearance Color	Black	Storage Temperature	-55~+125℃

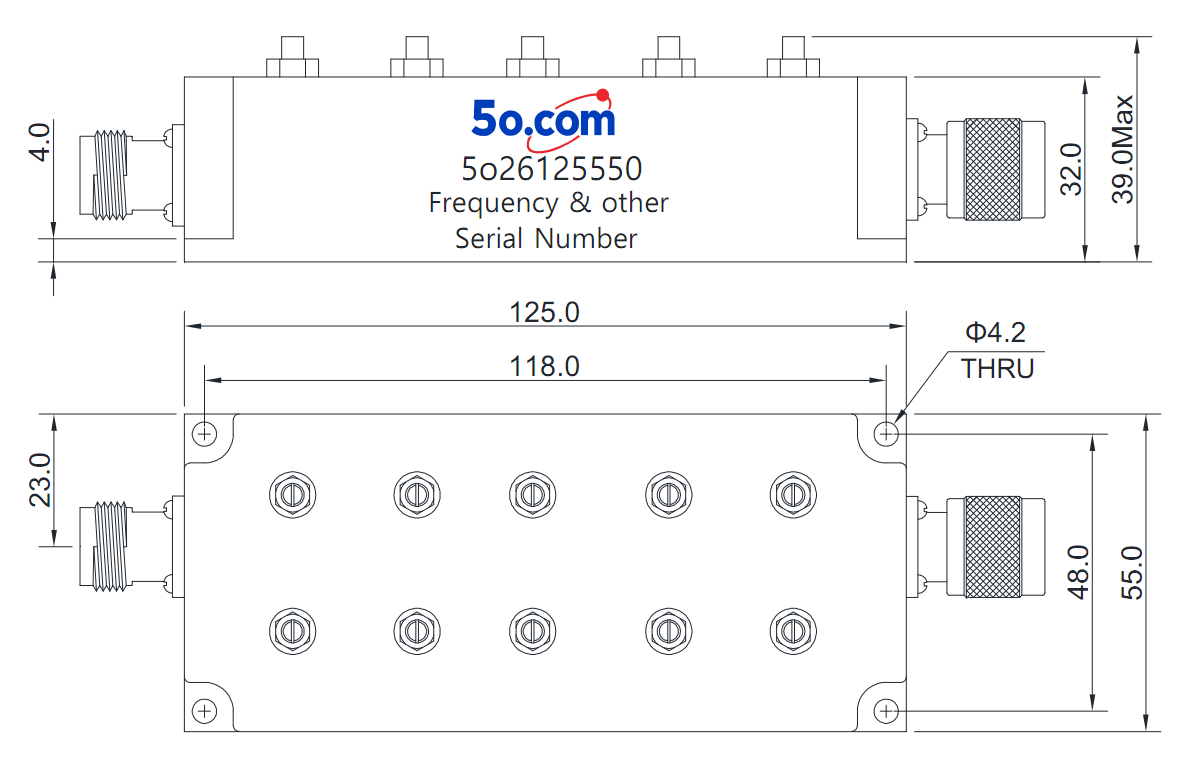

Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)

Part Number	Pass Band (MHz)	Insertion Loss Max (dB)	Ripple in-band Max(dB)	Return Loss Min (dB)	Rejection	IMD3	Connector Type
5o261255501920T1980NKNJ	1920~1980	1.2	1.0	18	60dB@DC~1900MHz 60dB@2000~3000MHz 50dB@3000~5500MHz	-150dBc@2x43dBm	N Female to N Male
5o261255501920T1980NK	1920~1980	1.2	1.0	18	60dB@DC~1900MHz 60dB@2000~3000MHz 50dB@3000~5500MHz	-150dBc@2x43dBm	N Female
5o261255501920T1980SK	1920~1980	1.2	1.0	18	60dB@DC~1900MHz 60dB@2000~3000MHz 50dB@3000~5500MHz	-130dBc@2x43dBm	SMA Female
