Part Number

Pass Band (MHz)

Insertion Loss
  Max(dB)

Ripple

in-band

Max(dB)

VSWR
  Max

Rejection

Connector

Type

5o2612553034003600SK

3400~3600

1.2

0.8

1.3

50dB@DC~3300MHz

50dB@3700~6000MHz

SMA Female

5o2612553034003600BK

3400~3600

1.2

0.8

1.3

50dB @DC~3300MHz

50dB@3700~6000MHz

BNC Female

5o2612553033004200NK

3300~4200

1.2

0.8

1.3

50dB @DC~2800MHz

50dB@4800~8000MHz

N Female

5o2612553044005000SK

4400~5000

1.2

0.8

1.3

50dB @DC~4200MHz

50dB@5200~8000MHz

SMA Female

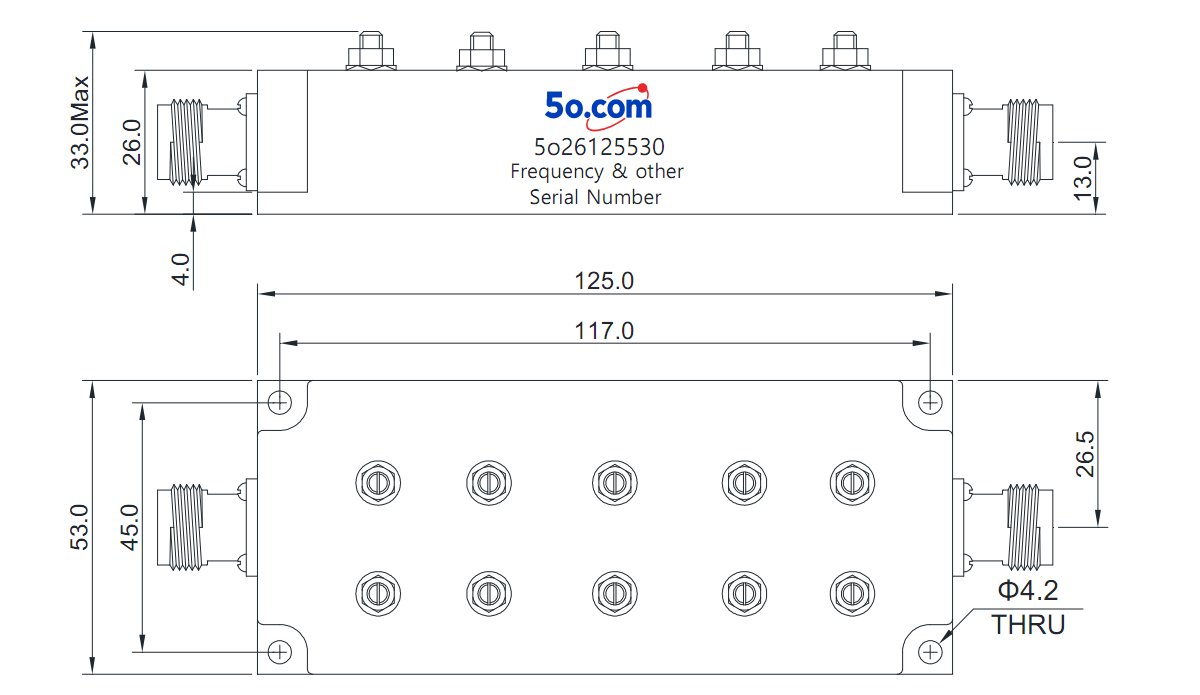

Dimension

125*53*13mm

Impedance

50Ω

Power

20W

Operating Temperature

-40 ~ +85℃

Appearance Color

Black

Storage Temperature

-55~+125℃
