Part Number

Pass Band (MHz)

Insertion Loss
  Max(dB)

Ripple in-band Max(dB)

Return loss Min(dB)

Rejection

Connector

Type

5o261251250340345SK

340 ~ 345

0.5

0.2

20

60dB @DC~320MHz
  60dB @365~2400MHz

SMA Female

5o261251250351355SK

351 ~ 355

0.5

0.2

20

60dB @DC~331MHz
  60dB @375~2400MHz

SMA Female

5o261251250420425SK

420 ~ 425

0.5

0.2

20

60dB @DC~400MHz
  60dB @445~2400MHz

SMA Female

5o261251250425430SK

425 ~ 430

0.5

0.2

20

60dB @DC~405MHz
  60dB @450~2400MHz

SMA Female

5o261251250430435SK

430 ~ 435

0.5

0.2

20

60dB @DC~410MHz
  60dB @455~2400MHz

SMA Female

5o261251250440445SK

440 ~ 445

0.5

0.2

20

60dB @DC~420MHz
  60dB @465~2400MHz

SMA Female

5o261251250445450SK

445 ~ 450

0.5

0.2

20

60dB @DC~425MHz
  60dB @470~2400MHz

SMA Female

5o261251250445450NK

445 ~ 450

0.5

0.2

20

60dB @DC~425MHz
  60dB @470~2400MHz

N Female

5o261251250460465NK

460 ~ 465

0.5

0.2

20

60dB @DC~440MHz
  60dB @485~2400MHz

N Female

5o261251250465470NK

465 ~ 470

0.5

0.2

20

60dB @DC~445MHz
  60dB @490~2400MHz

N Female

5o261251250470475NK

470 ~ 475

0.5

0.2

20

60dB @DC~450MHz
  60dB @495~2400MHz

N Female

5o261251250475480NK

475 ~ 480

0.5

0.2

20

60dB @DC~455MHz
  60dB @500~2400MHz

N Female

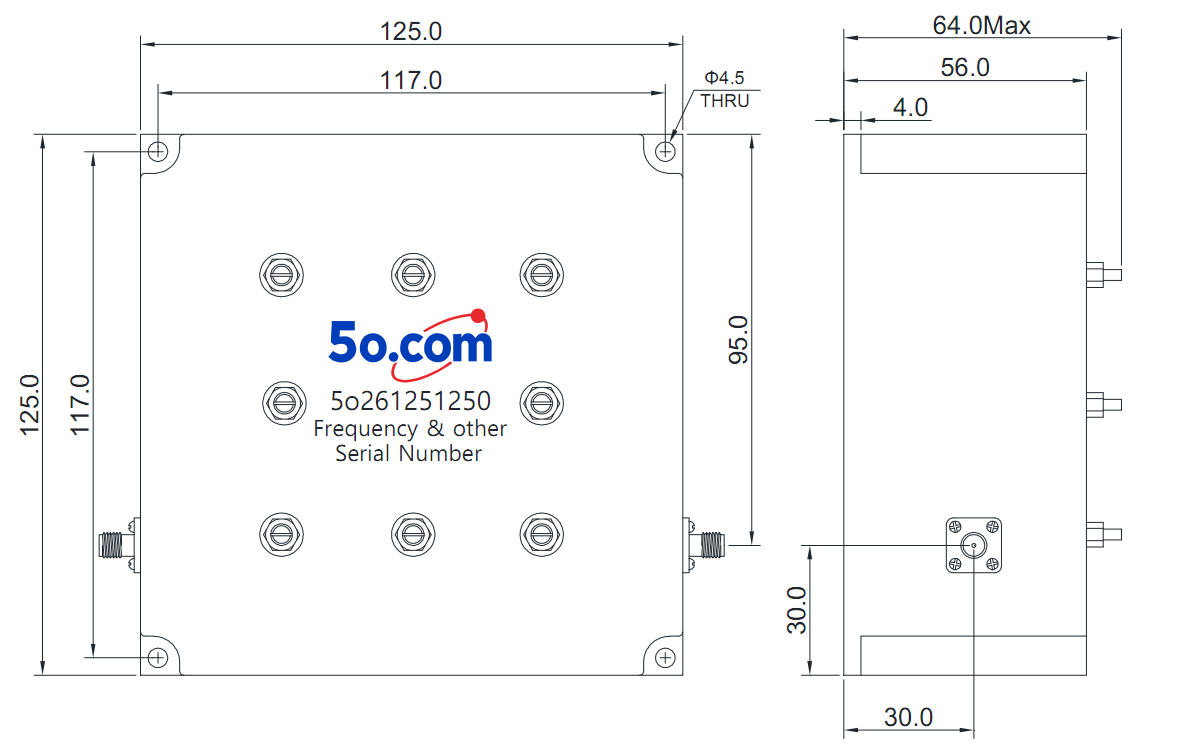

Dimension

125*125*64mm

Impedance

50Ω

Power

100W

Operating Temperature

-40 ~ +85℃

Appearance Color

Black

Storage Temperature

-55~+125℃
