     Band Pass Filter 1215 ~ 1400MHz

     Application

    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Pass Band

    (MHz)

    Insertion Loss
      Max(dB)

    VSWR Max

    Rejection

    Connector

    Type

    5o2611963012151400SK

    1215 ~ 1400

    0.8

    1.5

    65dB @1035MHz                               75dB   @1570~4000MHz

    SMA Female

    5o2611963012151400NK

    1215 ~ 1400

    0.8

    1.5

    65dB @1035MHz                                 75dB   @1570~4000MHz

    N Female

    Basic Specifications

    Dimension

    119*63*36mm

    Impedance

    50Ω

    Power

    100W

    Operating Temperature

    -40 ~ +85℃

    Appearance Color

    Black

    Storage Temperature

    -55~+125℃

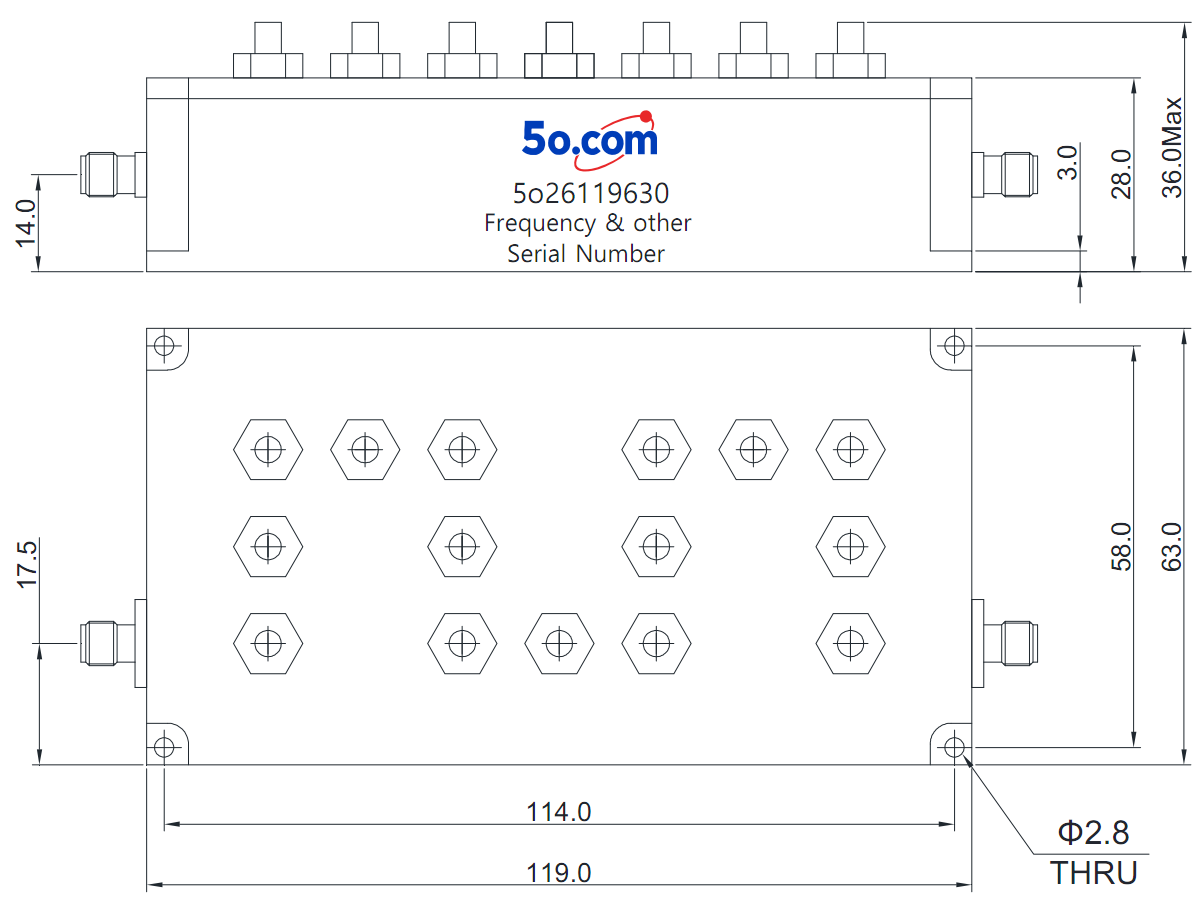

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated.
