      Band Pass Filter 2496 ~ 2690MHz

     Application

    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Pass Band

    (MHz)

    Insertion Loss
      Max(dB)

    Ripple in-band Max(dB)

    VSWR Max

    Rejection

    Connector

    Type

    5o261189002496T2690SK

    2496~2690

    1.5

    1.0

    1.3

    70dB@DC~2476MHz

    70dB@2710~5000MHz

    SMA Female

    5o261189002496T2690NK

    2496~2690

    1.5

    1.0

    1.3

    70dB@DC~2476MHz

    70dB@2710~5000MHz

    N Female

    Basic Specifications

    Dimension

    118*90*39mm

    Impedance

    50Ω

    Power

    20W

    Operating Temperature

    -40 ~ +85℃

    Appearance Color

    Black

    Storage Temperature

    -55~+125℃

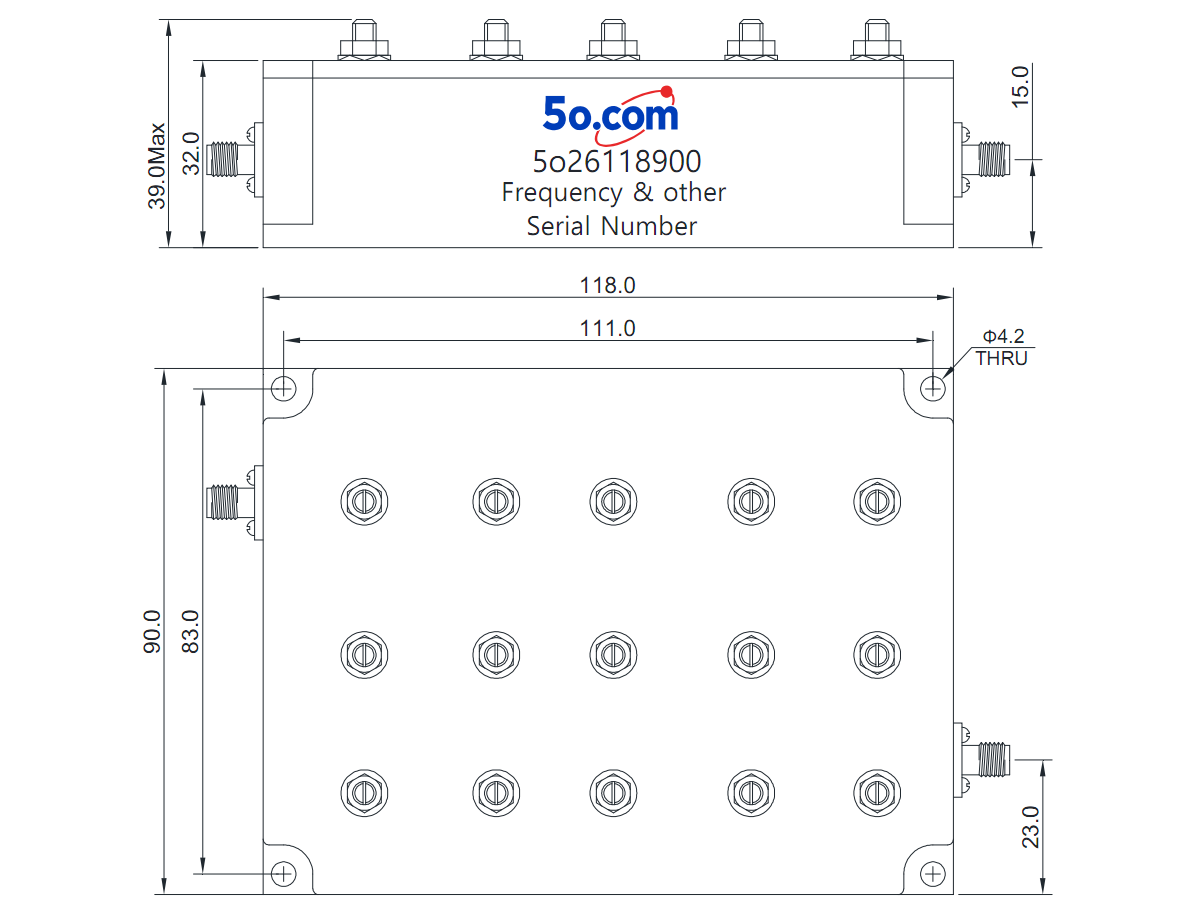

    Overall Dimension(mm)




    Tolerances: ±2% unless otherwise stated.
