    Band Pass Filter 1400 ~ 2500MHz

     Application

    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Pass Band

    (MHz)

    Insertion Loss
      Max(dB)

    Ripple in-band Max(dB)

    VSWR Max

    Rejection

    Connector

    Type

    5o2610673614801530SK

    1480 ~ 1530

    0.75

    0.5

    1.3

    5O2610673614801530SK

    SMA Female

    5o2610673614801530NK

    1480 ~ 1530

    0.75

    0.5

    1.3

    5O2610673614801530NK

    N Female

    5o2610673622402300SK

    2240 ~ 2300

    0.75

    0.5

    1.3

    5O2610673622402300SK

    SMA Female

    5o2610673622402300NK

    2240 ~ 2300

    0.75

    0.5

    1.3

    5O2610673622402300NK

    N Female

    Basic Specifications

    Dimension

    106*73*31mm

    Impedance

    50Ω

    Power

    10W

    Operating Temperature

    -40 ~ +70℃

    Appearance Color

    Black

    Storage Temperature

    -55~+125℃

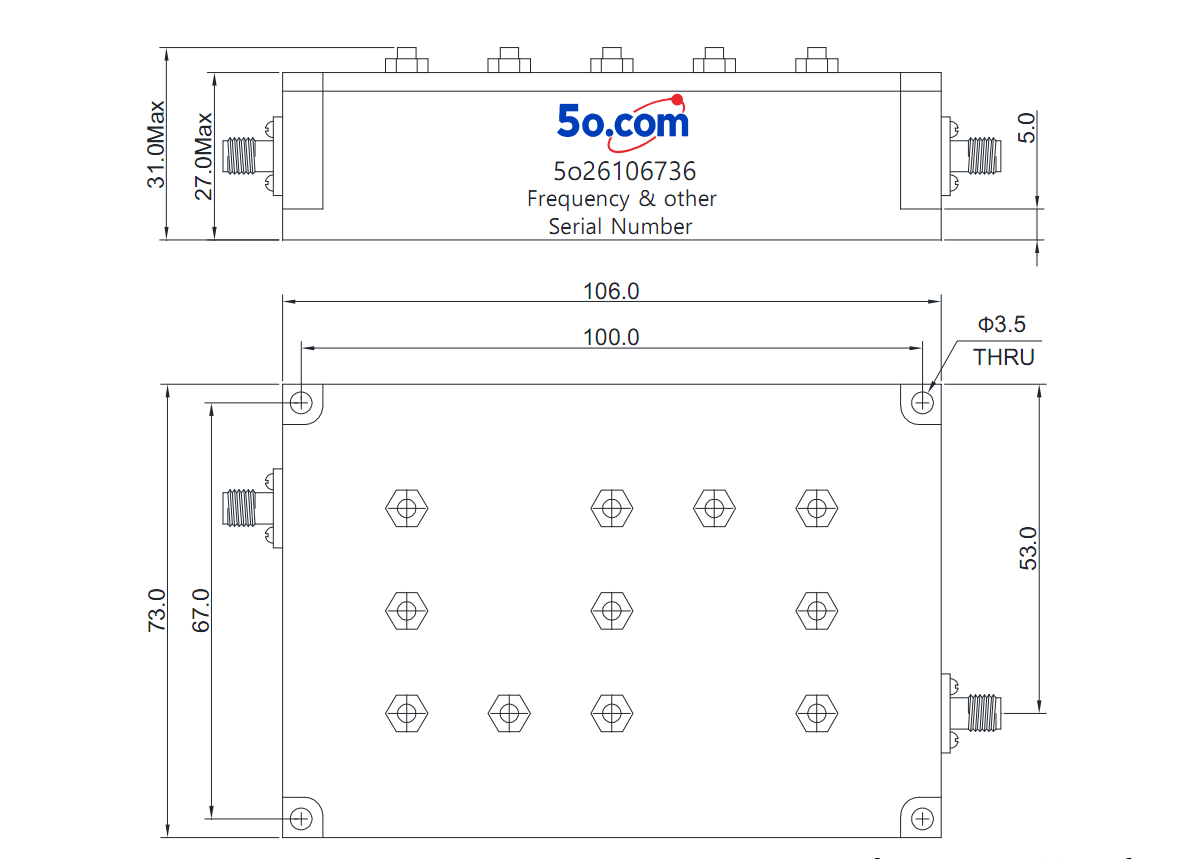

    Overall Dimension(mm)






    Tolerances: ±2% unless otherwise stated.
