    Band Pass Filter 563 ~ 577MHz

     Application

    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Pass Band

    (MHz)

    Insertion Loss
      Max(dB)

    VSWR Max

    Rejection

    Connector

    Type

    5o26106734563577SK

    563 ~ 577

    1.5

    1.5

    60dB @ Fo ±30MHz

    SMA Female

    5o26106734563577NK

    563 ~ 577

    1.5

    1.5

    60dB @ Fo ±30MHz

    N Female

    Basic Specifications

    Dimension

    106*73*58mm

    Impedance

    50Ω

    Power

    50W

    Operating Temperature

    -40 ~ +85℃

    Appearance Color

    Black

    Storage Temperature

    -55~+125℃

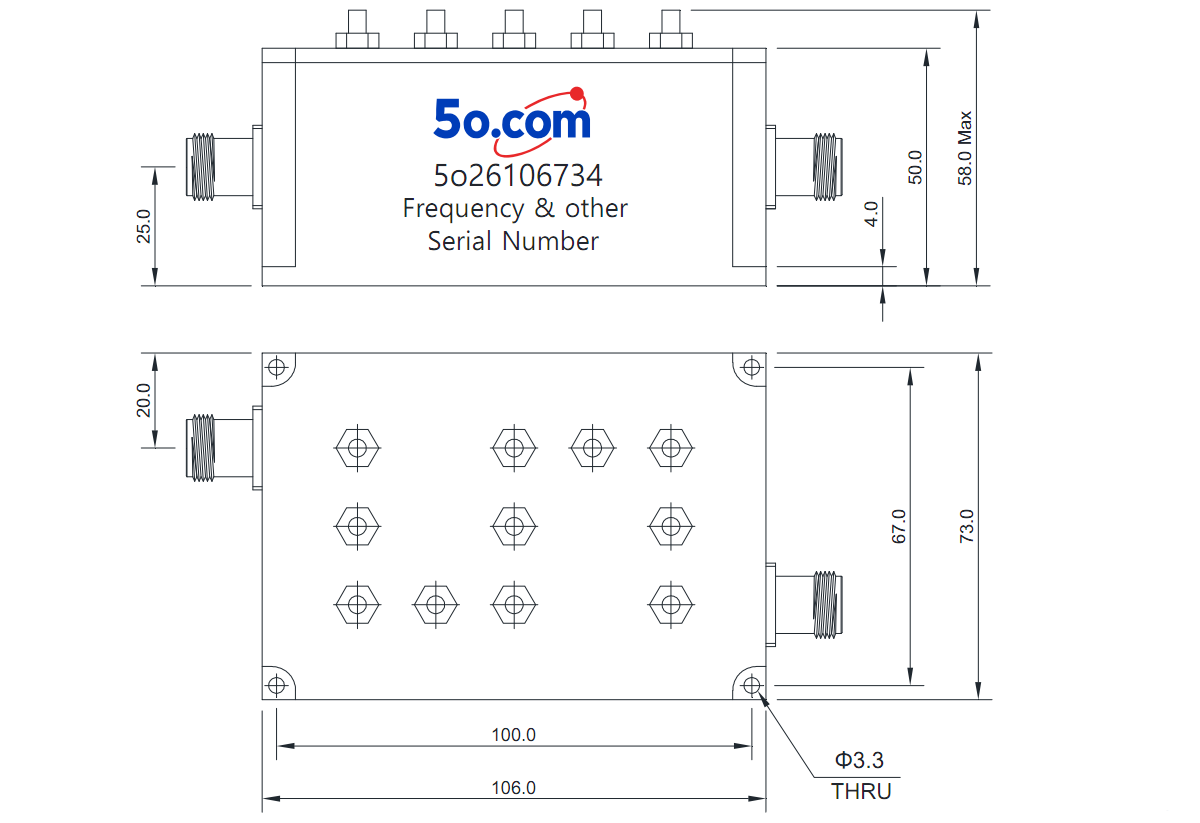

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated.
