Part Number

Pass Band (MHz)

Insertion Loss
  Max(dB)

VSWR
  Max

Rejection

Connector

Type

5o26106731390397NK

390 ~ 397

2.0

1.2

60dB @88~108MHz                            40dB @383.5MHz   & 403.5MHz

N Female

5o26106731391401SK

391 ~ 401

2.0

1.3

60dB@DC~350MHz&441~1000MHz   30dB@350~385MHz&406~441MHz

SMA Female

5o26106731400410SK

400 ~ 410

2.0

1.3

60dB@DC~360MHz&450~1000MHz   30dB@360~395MHz&415~450MHz

SMA Female

5o2610673140654135NK

406.5 ~ 413.5

2.0

1.3

60dB @88~108MHz                                 40dB @   401.5MHz & 418.5MHz

N Female

5o2610673141154185NK

411.5 ~ 418.5

2.0

1.3

60dB @88~108MHz                               40dB @   406.5MHz & 423.5MHz

N Female

5o26106731440447SK

440 ~ 447

2.0

1.3

60dB @88~108MHz                               40dB @435MHz   & 452MHz

SMA Female

5o26106731442450SK

442 ~ 450

2.0

1.3

60dB @88~108MHz                             40dB @436MHz   & 456MHz

SMA Female

5o26106731445452NK

445 ~ 452

2.0

1.3

60dB @88~108MHz                                40dB @440MHz   & 457MHz

N Female

5o2610673145154585NK

451.5 ~ 458.5

2.0

1.3

60dB @88~108MHz                                    40dB   @446.5MHz & 463.5MHz

N Female

5o2610673145654635NK

456.5 ~ 463.5

2.0

1.3

60dB @88~108MHz                               40dB @451.5MHz   & 468.5MHz

N Female

5o26106731461468NK

461 ~ 468

2.0

1.3

60dB @88~108MHz                             40dB @455MHz   & 473MHz

N Female

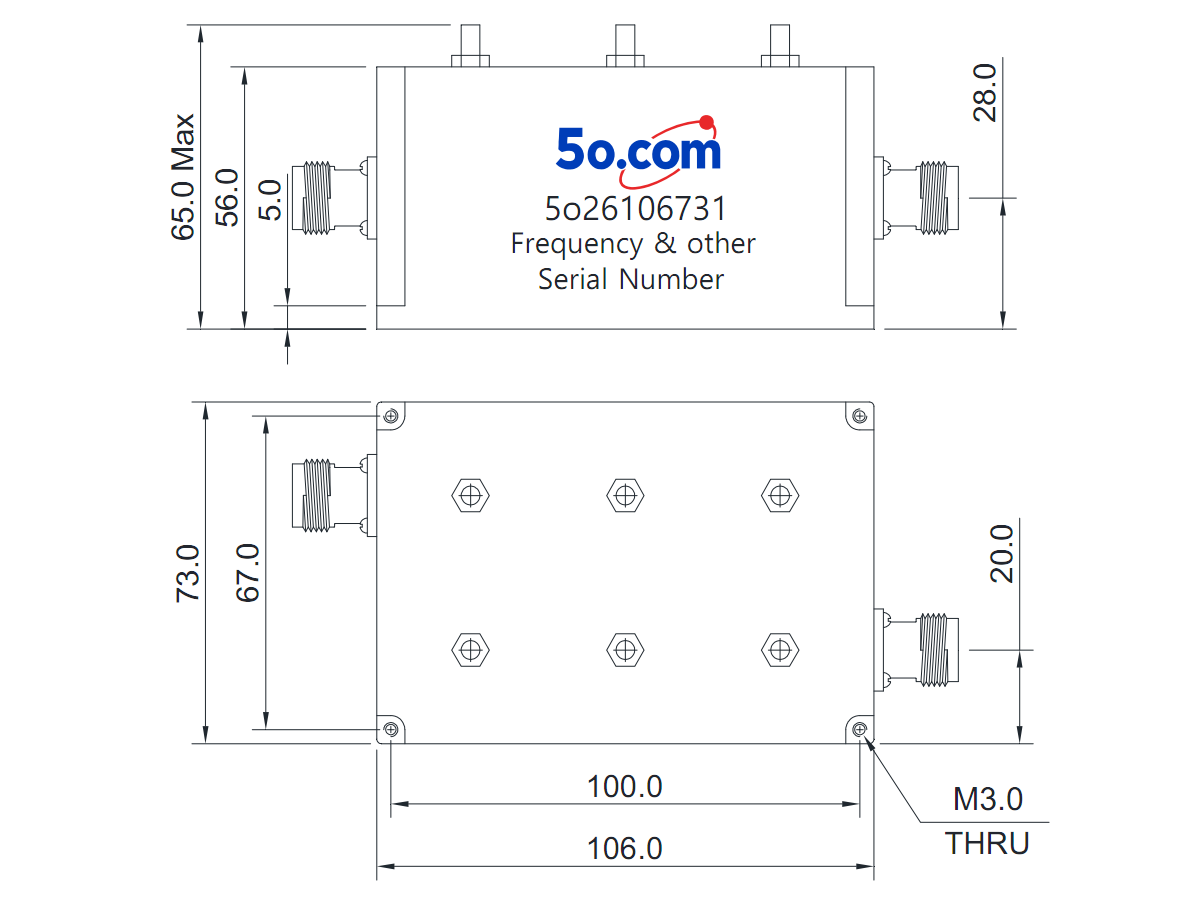

Dimension

106*73*65mm

Impedance

50Ω

Power

80W

Operating Temperature

-40 ~ +85℃

Appearance Color

Black

Storage Temperature

-55~+125℃
