    Band Pass Filter 885 ~ 889MHz

     Application

    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Pass Band

    (MHz)

    Insertion Loss
      Max(dB)

    VSWR Max

    Rejection

    Connector

    Type

    5o26100690885889SK

    885 ~ 889

    3.0

    1.5

    70dB @925~960MHz                           40dB @DC~880MHz

    SMA Female

    5o26100690885889NK

    885 ~ 889

    3.0

    1.5

    70dB @925~960MHz                             40dB @DC~880MHz

    N Female

    Basic Specifications

    Dimension

    100*69*43mm

    Impedance

    50Ω

    Power

    50W

    Operating Temperature

    -40 ~ +85℃

    Appearance Color

    Black

    Storage Temperature

    -55~+125℃

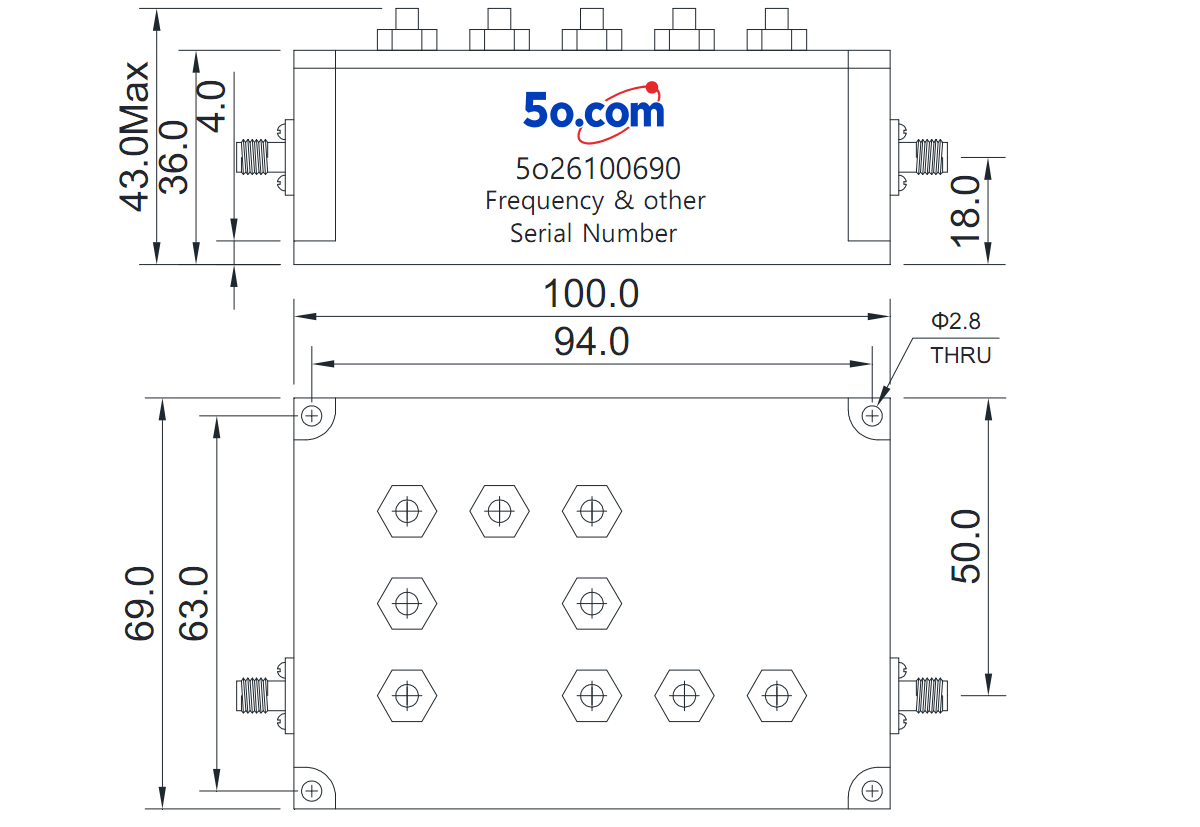

    Overall Dimension(mm)




    Tolerances: ±2% unless otherwise stated.
