Part Number

Pass Band

(MHz)

Insertion Loss
  Max(dB)

Ripple in-band Max(dB)

VSWR Max

Rejection

Connector

Type

5o2610060013501518SK

1350 ~ 1518

0.8

0.5

1.4

60dB @1625 ~ 1785MHz                               60dB @2700 ~   4554MHz

SMA Female

5o2610060016251785SK

1625 ~ 1785

0.8

0.5

1.4

60dB @1350 ~ 1518MHz                                60dB @3250 ~   5355MHz

SMA Female

5o2610060013501518NK

1350 ~ 1518

0.8

0.5

1.4

60dB @1625 ~ 1785MHz                          60dB @2700 ~   4554MHz

N Female

5o2610060016251785SK

1625 ~ 1785

0.8

0.5

1.4

60dB @1350 ~ 1518MHz                                60dB @3250 ~   5355MHz

SMA Female

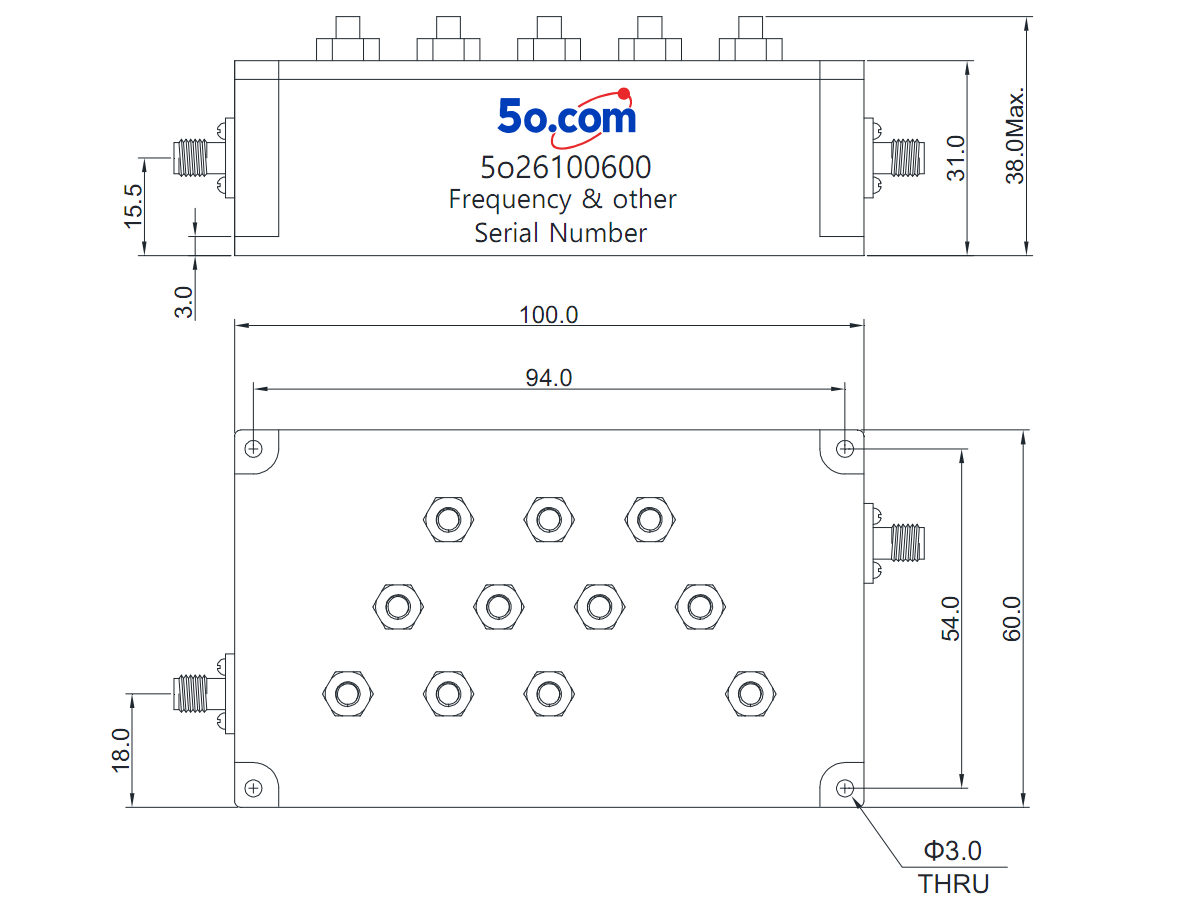

Dimension

100*60*38mm

Impedance

50Ω

Power

SMA: 50W

Operating Temperature

55 ~ +85℃

N: 100W

Appearance Color

Black

Storage Temperature

-55~+125℃
