    Dual Junction Microstrip Circulator Magnetic Shield 14.0 ~ 18.0GHz

     Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.


    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    1-2

    2-3

    3-1

    3-2

    2-1

    1-3

    5o258721415

    14.0 ~ 15.0

    20

    20

    30

    20

    1.25

    0.45

    0.85

    Microstrip

    5o258721418

    14.0 ~ 18.0

    16

    17

    28

    17

    1.35

    0.65

    1.1

    Microstrip

    5o258721517

    15.0 ~ 17.0

    20

    20

    30

    20

    1.25

    0.5

    0.9

    Microstrip

    5o258721518

    15.0 ~ 18.0

    18

    18

    30

    18

    1.3

    0.6

    1

    Microstrip

    5o25872155165

    15.5 ~ 16.5

    20

    20

    30

    20

    1.25

    0.45

    0.85

    Microstrip

    5o258721618

    16.0 ~ 18.0

    20

    20

    30

    20

    1.25

    0.5

    0.9

    Microstrip

    5o25872165175

    16.5 ~ 17.5

    20

    20

    30

    20

    1.25

    0.45

    0.85

    Microstrip

    Basic Specifications

    Dimension

    8*7*4mm

    Impedance

    50Ω

    Forward Power

    10W

    Operating   Temperature

    -55 ~ +85℃

    Reverse   Power

    3W

    Storage Temperature

    -55~+125℃

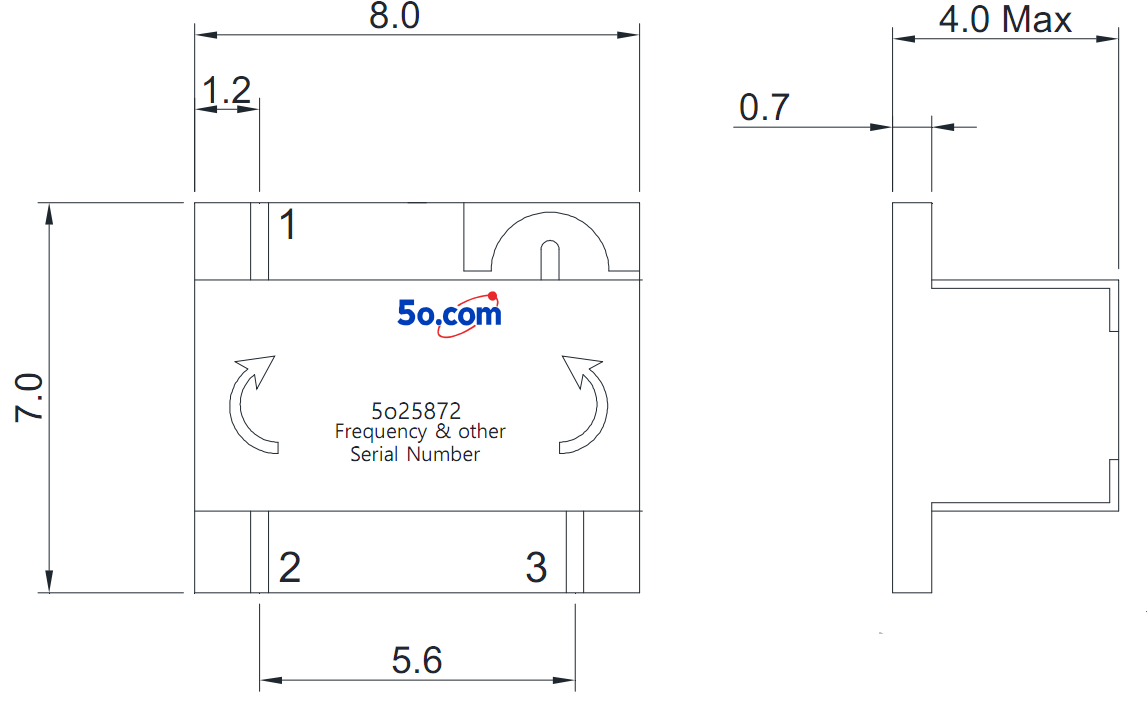

    Overall Dimension(mm,Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆The microstrip isolator/circulator is installed via gold wire bonding.

    ◆Avoid strong magnetic fields near the product during installation/use, as they may alter the bias magnetic field and affect performance.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
