    Dual Junction Microstrip Circulator 8.0 ~ 12.0GHz

     Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.


    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    1-2

    2-3

    3-1

    3-2

    2-1

    1-3

    5o251081812

    8.0 ~ 12.0

    14

    16

    28

    16

    1.35

    0.65

    1.1

    Microstrip

    5o2510818393

    8.3 ~ 9.3

    20

    20

    30

    20

    1.25

    0.45

    0.85

    Microstrip

    5o251081996

    9.0 ~ 9.6

    20

    20

    30

    20

    1.25

    0.45

    0.85

    Microstrip

    5o251081910

    9.0 ~ 10.0

    20

    20

    30

    20

    1.25

    0.5

    0.9

    Microstrip

    5o2510811011

    10.0 ~ 11.0

    20

    20

    30

    20

    1.25

    0.5

    0.9

    Microstrip

    Basic Specifications

    Dimension

    10*8*2.5mm

    Impedance

    50Ω

    Forward Power

    10W

    Operating   Temperature

    -55 ~ +85℃

    Reverse   Power

    5W

    Storage Temperature

    -55~+125℃

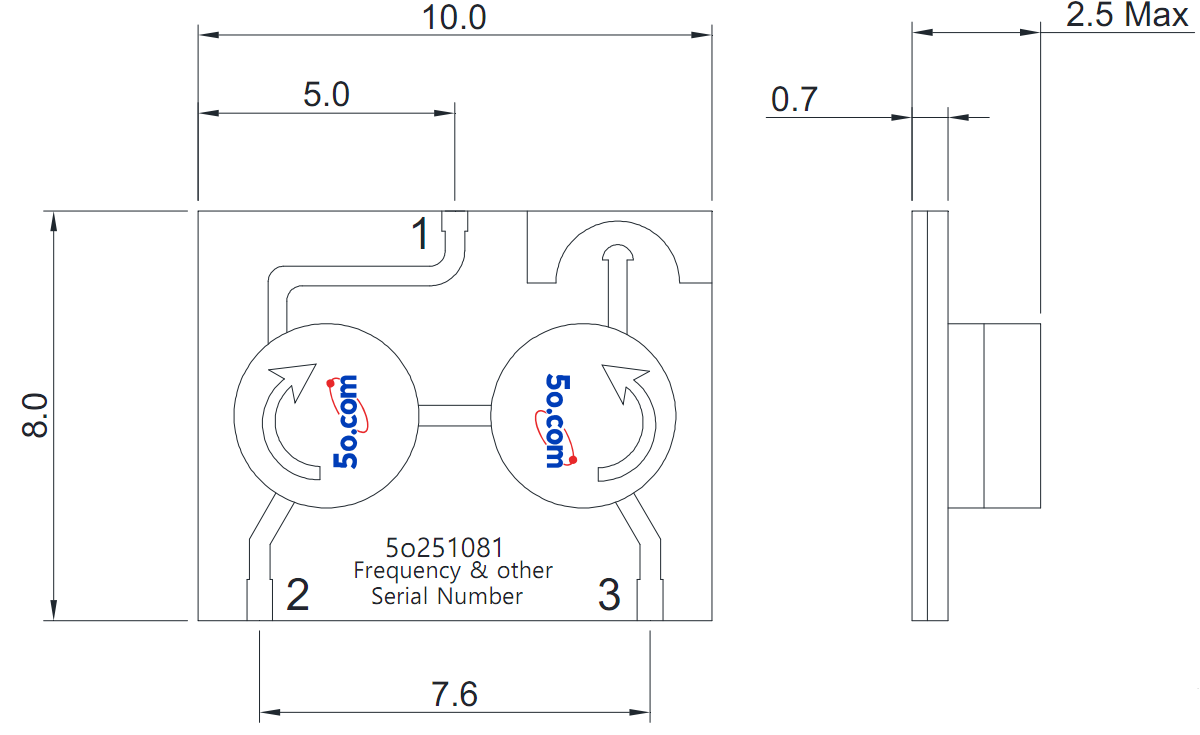

    Overall Dimension(mm,Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆The microstrip isolator/circulator is installed via gold wire bonding.

    ◆Avoid strong magnetic fields near the product during installation/use, as they may alter the bias magnetic field and affect performance.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
