    2 TX Combiner 175 ~ 400MHz

    Application



    ▶Base Stations & Antenna feeds.

    ▶Remote control and Internet of Things devices.

    ▶Military, Space and Commercial applications.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part   Number

    Frequency   Range

     (MHz)

    Insertion   Loss(dB)

    Isolation
      Min(dB)

    VSWR
      Max

    5o2461U2175118NK

    175 ~ 180

    4.5dB Max.

    70dB Min.

    1.3:1   Max.

    5o2461U2180200NK

    180 ~ 200

    4.8dB Max.

    65dB Min.

    1.3:1 Max.

    5o2461U2200225NK

    200 ~ 225

    4.8dB Max.

    65dB Min.

    1.3:1   Max.

    5o2461U2225400NK

    225 ~ 400

    5.0dB Max.

    60dB Min.

    1.3:1 Max.

    5o2461U2250270NK

    250 ~ 270

    4.5dB Max.

    70dB Min.

    1.3:1 Max.

    Basic Specifications

    Number of Channels

    N Female @2xTX N Female @1xANT

    Input Power

    TX-ANT 50W/CH

    Weight

    ~5.5 Kg

    Dimension

    1U (483*300*45mm)

    Appearance color

    Black

    Operating Temperature

    -30~+75℃

    Storage Temperature

    -55~+125℃

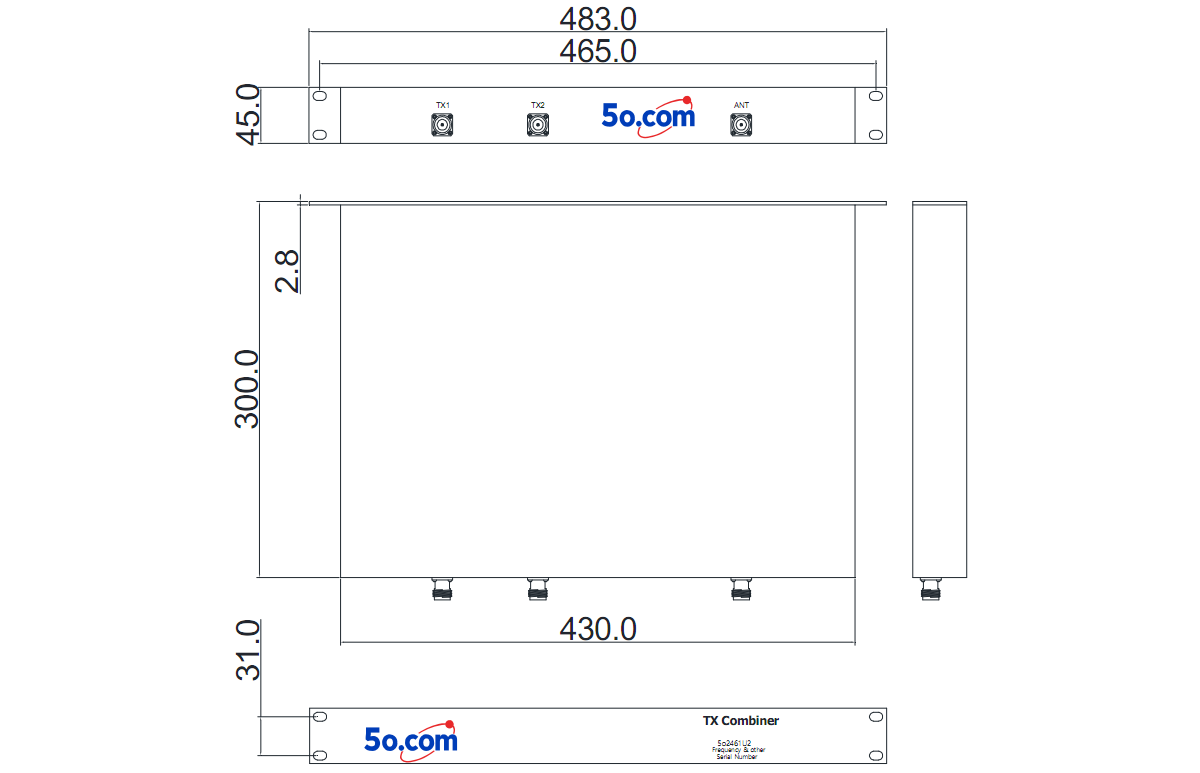

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
