    2 TX Combiner 350 ~ 520MHz

     Application

    ▶Base Stations & Antenna feeds.

    ▶Remote control and Internet of Things devices.

    ▶Military, Space and Commercial applications.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part   Number

    Frequency   Range

     (MHz)

    Insertion   Loss(dB)

    Isolation
      Min(dB)

    VSWR
      Max

    5o2461U1351366NK

    351 ~ 366

    3.8dB   Max.

    75dB Min.

    1.2:1 Max.

    5o2461U1400420NK

    400 ~ 420

    3.8dB Max.

    75dB Min.

    1.2:1 Max.

    5o2461U1410440NK

    410 ~ 440

    3.8dB   Max.

    75dB Min.

    1.2:1 Max.

    5o2461U1440470NK

    440 ~ 470

    3.8dB Max.

    75dB Min.

    1.2:1 Max.

    5o2461U1450470NK

    450 ~ 470

    3.8dB Max.

    75dB Min.

    1.2:1 Max.

    Basic Specifications

    Number of Channels

    N Female @2xTX N Female @1xANT

    Input Power

    TX-ANT 50W/CH

    Weight

    ~5.0 Kg

    Dimension

    1U (483*300*45mm)

    Appearance color

    Black

    Operating Temperature

    -30~+75℃

    Storage Temperature

    -55~+125℃

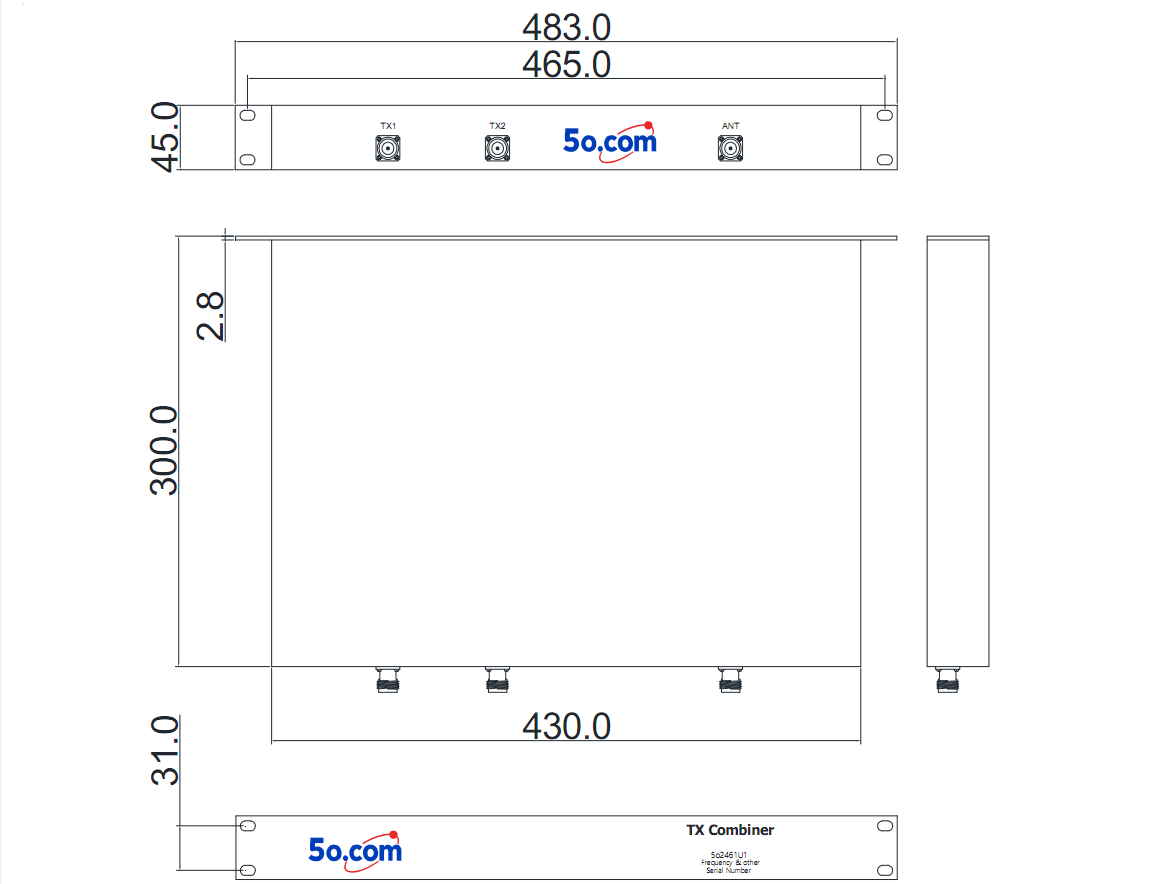

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
