Part   Number

Frequency   Range

 (MHz)

Insertion   Loss(dB)

Isolation
  Min(dB)

VSWR
  Max

5o2461U0108118NK

108 ~ 118

4.5dB Max

75dB Min.

1.2:1 Max

5o2461U0118137NK

118 ~ 137

4.5dB Max

75dB Min.

1.2:1 Max

5o2461U0136174NK

136 ~ 174

4.5dB Max

70dB Min.

1.2:1 Max

5o2461U0150170NK

150 ~ 170

4.5dB Max

75dB Min.

1.2:1 Max

5o2461U0150200NK

150 ~ 200

4.5dB Max

70dB Min.

1.2:1 Max

Number of Channels

N Female @2xTX N Female @1xANT

Input Power

TX-ANT 50W/CH

Weight

~6.5 Kg

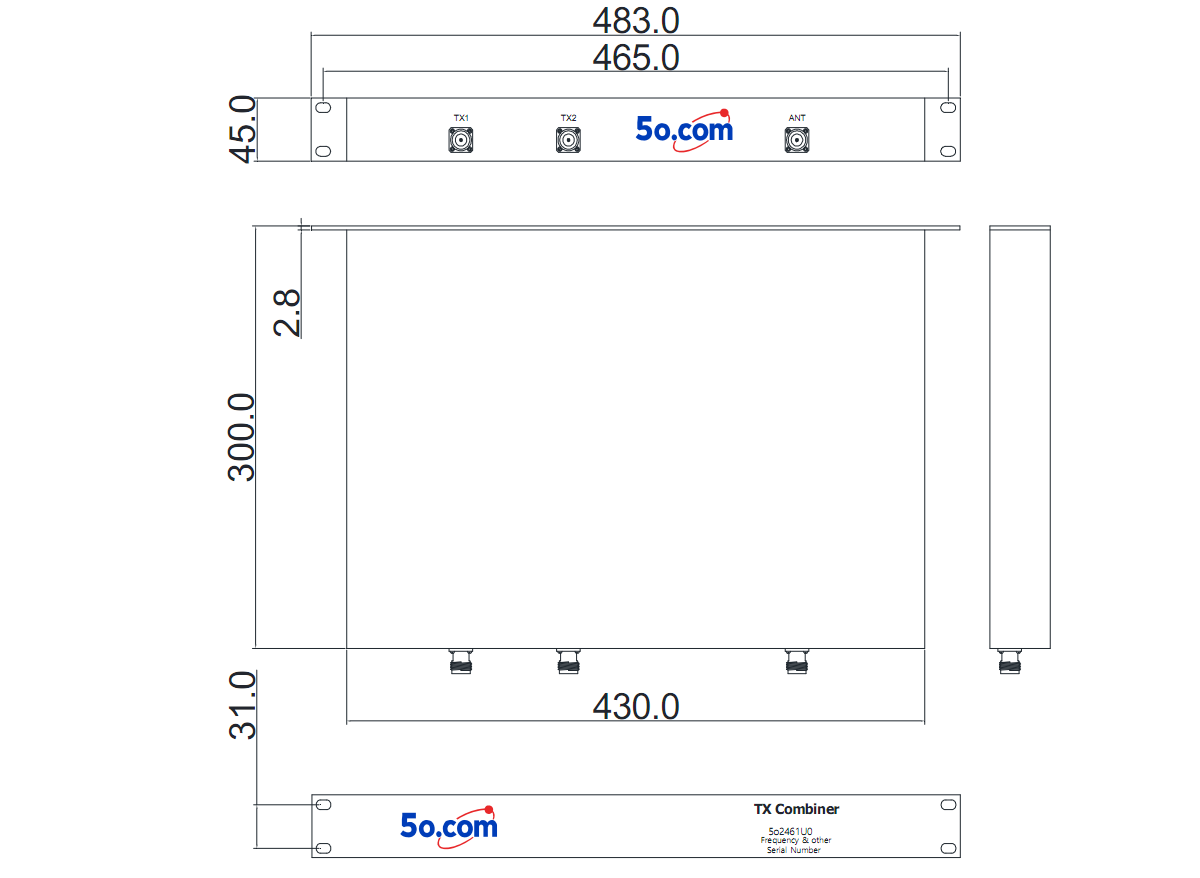

Dimension

1U (483*300*45)mm

Appearance color

Black

Operating Temperature

-30~+75℃

Storage Temperature

-55~+125℃
