    download 5o21500124S

    50W Coaxial Termination DC-12.4GHz

    Application




    ▶Wireless communication system.

    ▶Radar and satellite systems.

    ▶Testing and measuring equipment.

    ▶Military, Space and Commercial applications.




    RF Characteristics

    Part Number

    Frequency range

    Power

    VSWR
      Max

    Connector

    Type

    Impedance

    5o21500124SJ

    DC-12.4GHz

    1.3

    50W

    SMA Male

    50 Ω

    5o21500124SK

    DC-12.4GHz

    1.3

    50W

    SMA Female

    50 Ω

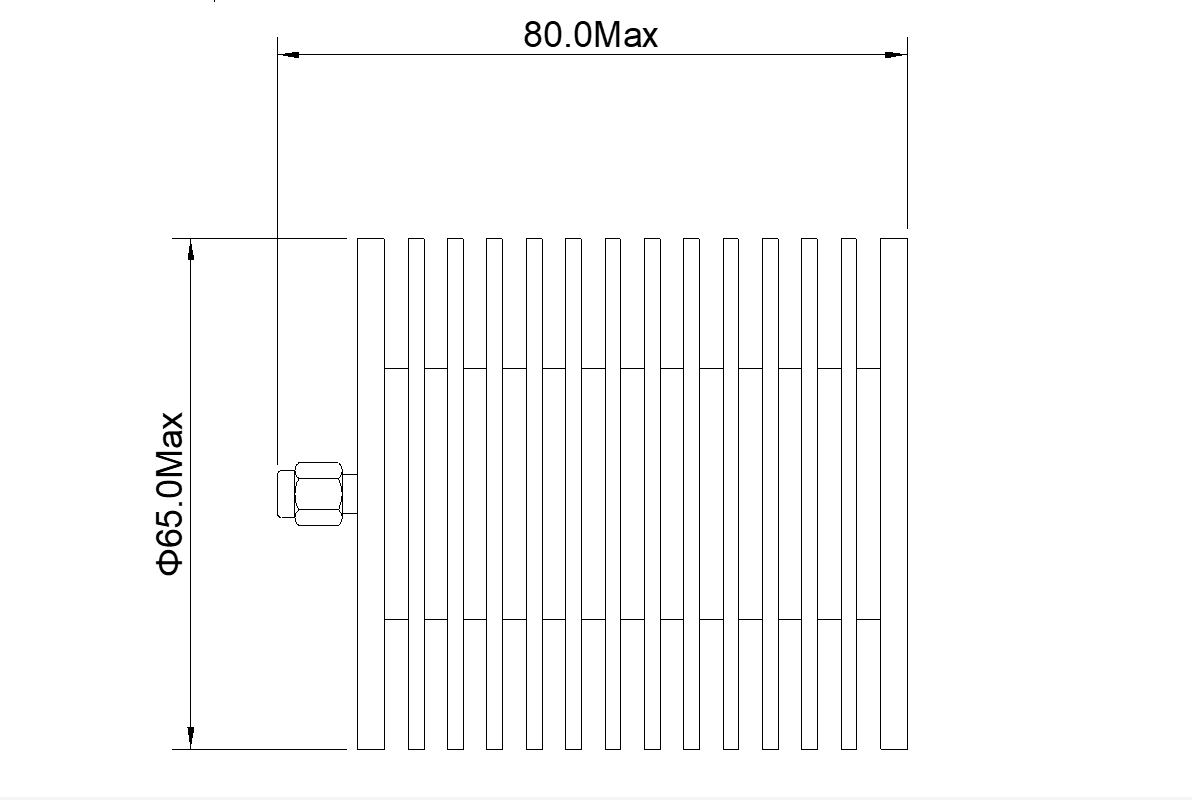

    Overall Dimension(mm,Tolerances: ±2% unless otherwise stated.)


    Power Derating Diagram

    Power Derating Diagram.png

    Notes

    ◆If necessary, the product shall be air-cooled for auxiliary heat dissipation.

    ◆Custom design is available upon request.

    ◆It supports a one-year standard warranty.
