    100W Coaxial Termination DC-18GHz

    Application




    ▶Wireless communication system.

    ▶Radar and satellite systems.

    ▶Testing and measuring equipment.

    ▶Military, Space and Commercial applications.




    RF Characteristics

    Part Number

    Frequency range

    Power

    VSWR
      Max

    Connector

    Type

    Impedance

    5o21100018NJ

    DC-4GHz

    100W

    1.2

    N Male

    50 Ω

    4 ~ 8GHz

    1.25

    8 ~ 12.4GHz

    1.35

    12.4 ~ 18GHz

    1.4

    5o21100018NK

    DC-4GHz

    100W

    1.2

    N Female

    50 Ω

    4 ~ 8GHz

    1.25

    8 ~ 12.4GHz

    1.35

    12.4 ~ 18GHz

    1.4

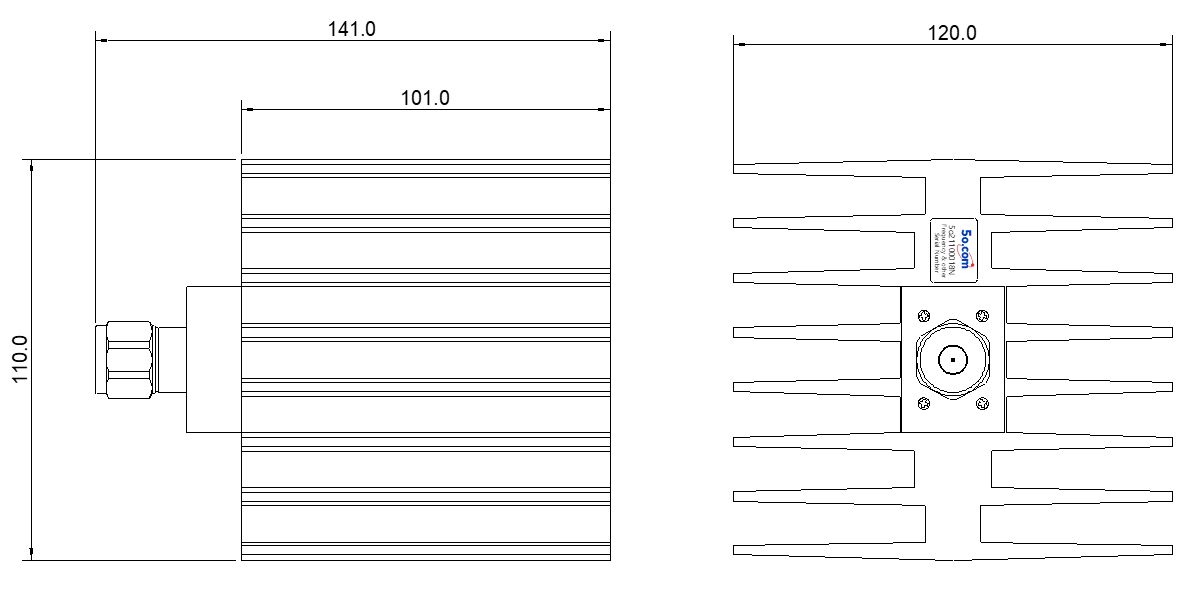

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)




    Power Derating Diagram

     Power Derating Diagram.png



    Notes

    ◆If necessary, the product shall be air-cooled for auxiliary heat dissipation.

    ◆Custom design is available upon request.

    ◆It supports a one-year standard warranty.
