    300W Coaxial Attenuator DC-3GHz

    Application

    ▶Wireless communication system.

    ▶Radar and satellite systems.

    ▶Testing and measuring equipment.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency   range

    Power

    Attenuation   Value

    Attenuation   Tolerance

    VSWR
      Max

    Connector   Type

    5o2030003N5

    DC-3GHz

    300W

    5 dB

    ±1.0 dB

    1.2

    N Male to N Female

    5o2030003N6

    6 dB

    ±1.0 dB

    1.2

    5o2030003N10

    10 dB

    ±1.0 dB

    1.2

    5o2030003N20

    20 dB

    ±1.5 dB

    1.2

    5o2030003N30

    30 dB

    ±1.5 dB

    1.2

    5o2030003N40

    40 dB

    ±1.5 dB

    1.2

    5o2030003N50

    50 dB

    ±1.5 dB

    1.2

    5o2030003N60

    60 dB

    ±2.0 dB

    1.2

    5o2030003D5

    5 dB

    ±1.0 dB

    1.2

    7/16 Male to 7/16 Female

    5o2030003D6

    6 dB

    ±1.0 dB

    1.2

    5o2030003D10

    10 dB

    ±1.0 dB

    1.2

    5o2030003D20

    20 dB

    ±1.5 dB

    1.2

    5o2030003D30

    30 dB

    ±1.5 dB

    1.2

    5o2030003D40

    40 dB

    ±1.5 dB

    1.2

    5o2030003D50

    50 dB

    ±1.5 dB

    1.2

    5o2030003D60

    60 dB

    ±2.0 dB

    1.2

    Basic Specifications

    Impedance

    50Ω

    Storage Temperature

    -55~+125℃

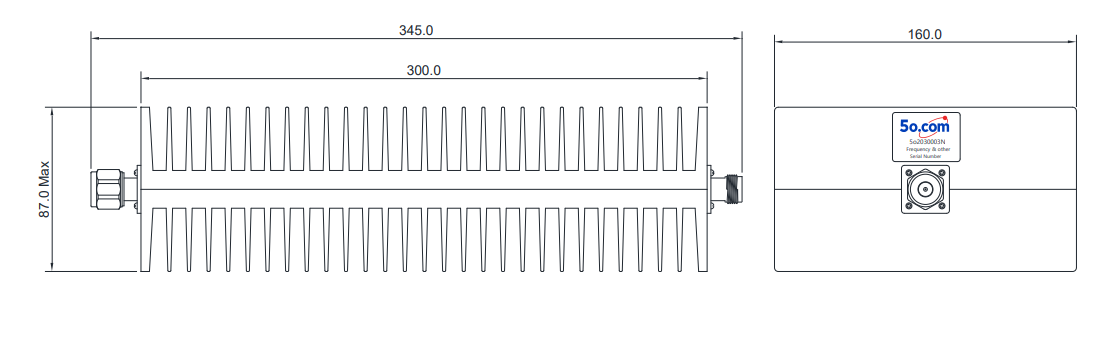

     Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)


    Power Derating Diagram

    Power Derating Diagram.png

    Notes

    ◆Coaxial attenuator impedance matched to 50Ω.

    ◆If necessary, the product shall be air-cooled for auxiliary heat dissipation.

    ◆For products with a power of over 50W, pay attention to the direction during use and strictly avoid reverse connection.

    ◆Custom design is available upon request.

    ◆It supports a one-year standard warranty.
