    2W Coaxial Attenuator DC-18GHz

    Application

    ▶Wireless communication system.

    ▶Radar and satellite systems.

    ▶Testing and measuring equipment.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency range

    Power

    Attenuation Value

    Attenuation Tolerance

    VSWR
      Max

    5o202018S1

    DC-18.0GHz

    2W

    1 dB

    ±0.6 dB

    1.35

    5o202018S2

    2 dB

    ±0.6 dB

    1.35

    5o202018S3

    3 dB

    ±0.6 dB

    1.35

    5o202018S4

    4 dB

    ±0.6 dB

    1.35

    5o202018S5

    5 dB

    ±0.6 dB

    1.35

    5o202018S6

    6 dB

    ±0.5 dB

    1.35

    5o202018S7

    7 dB

    ±0.5 dB

    1.35

    5o202018S8

    8 dB

    ±0.5 dB

    1.35

    5o202018S9

    90 dB

    ±0.6 dB

    1.35

    5o202018S10

    10 dB

    ±0.6 dB

    1.35

    5o202018S15

    15 dB

    ±0.8 dB

    1.35

    5o202018S20

    20 dB

    ±1.0 dB

    1.35

    5o202018S30

    30 dB

    ±1.0 dB

    1.35

    5o202018S40

    40 dB

    ±2.0 dB

    1.35

    5o202018S50

    50 dB

    ±2.5 dB

    1.35

    5o202018S60

    60 dB

    ±0.6 dB

    1.35

    asic Specifications

    Impedance

    50Ω

    Connector Type

    SMA Male to Female

    Power

    2W

    Storage Temperature

    -55~+125℃

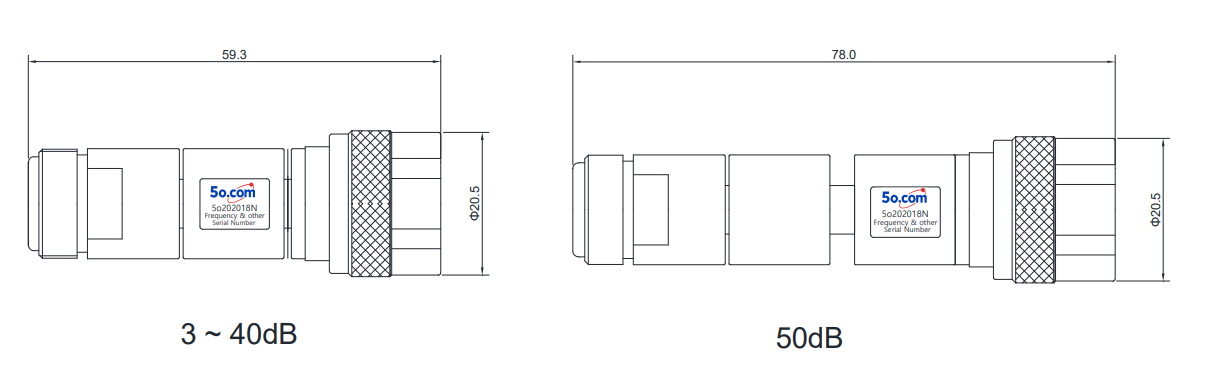

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)


    Power Derating Diagram

    Power Derating Diagram.png

    Notes

    ◆Coaxial attenuator impedance matched to 50Ω.

    ◆If necessary, the product shall be air-cooled for auxiliary heat dissipation.

    ◆For products with a power of over 50W, pay attention to the direction during use and strictly avoid reverse connection.

    ◆Custom design is available upon request.

    ◆It supports a one-year standard warranty.
