    10W Coaxial Attenuator DC-8GHz

    Application

    ▶Wireless communication system.

    ▶Radar and satellite systems.

    ▶Testing and measuring equipment.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency range

    Power

    Attenuation Value

    Attenuation Tolerance

    VSWR
      Max

    5o201008N10

    DC-8GHz

    10W

    10 dB

    ±0.6 dB

    1.3

    5o201008N20

    20 dB

    ±0.8 dB

    1.3

    5o201008N30

    30 dB

    ±1.0 dB

    1.3

    Basic Specifications

    Impedance

    50Ω

    Connector Type

    N Male to Female

    Power

    10W

    Storage Temperature

    -55~+125℃

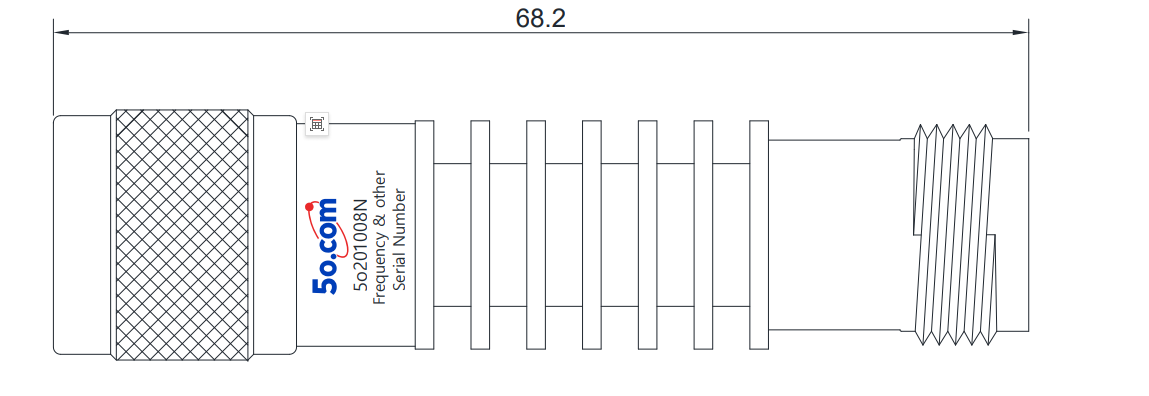

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)


    Power Derating Diagram

    Power Derating Diagram.png

    Notes

    ◆Coaxial attenuator impedance matched to 50Ω.

    ◆If necessary, the product shall be air-cooled for auxiliary heat dissipation.

    ◆For products with a power of over 50W, pay attention to the direction during use and strictly avoid reverse connection.

    ◆Custom design is available upon request.

    ◆It supports a one-year standard warranty.
