    100W Coaxial Attenuator DC-12.4GHz

    Application

    ▶Wireless communication system.

    ▶Radar and satellite systems.

    ▶Testing and measuring equipment.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part   Number

    Frequency   range

    Power

    Attenuation   Value

    Attenuation   Tolerance

    VSWR
      Max

    5o201000124N6

    DC-4GHz

    100W

    6 dB

    ±0.7 dB

    1.2

    4 ~ 8GHz

    ±0.8 dB

    1.25

    8 ~ 12.4GHz

    ±0.9 dB

    1.35

    5o201000124N10

    DC-4GHz

    10 dB

    ±0.7 dB

    1.2

    4 ~ 8GHz

    ±0.8 dB

    1.25

    8 ~ 12.4GHz

    ±0.9 dB

    1.35

    5o201000124N20

    DC-4GHz

    20 dB

    ±0.7 dB

    1.2

    4 ~ 8GHz

    ±0.8 dB

    1.25

    8 ~ 12.4GHz

    ±0.9 dB

    1.35

    5o201000124N30

    DC-4GHz

    30 dB

    ±0.8 dB

    1.2

    4 ~ 8GHz

    ±0.9 dB

    1.25

    8 ~ 12.4GHz

    ±1.0 dB

    1.35

    5o201000124N40

    DC-4GHz

    40 dB

    ±0.8 dB

    1.2

    4 ~ 8GHz

    ±0.9 dB

    1.25

    8 ~ 12.4GHz

    ±1.0 dB

    1.35

    5o201000124N50

    DC-4GHz

    50 dB

    ±1.0 dB

    1.2

    4 ~ 8GHz

    ±1.0 dB

    1.25

    8 ~ 12.4GHz

    ±1.1 dB

    1.35

    5o201000124N60

    DC-4GHz

    60 dB

    ±1.0 dB

    1.2

    4 ~ 8GHz

    ±1.0 dB

    1.25

    8 ~ 12.4GHz

    ±1.1 dB

    1.35

    Basic Specifications

    Impedance

    50Ω

    Connector Type

    N Male to Female

    Power

    100W

    Storage Temperature

    -55~+125℃

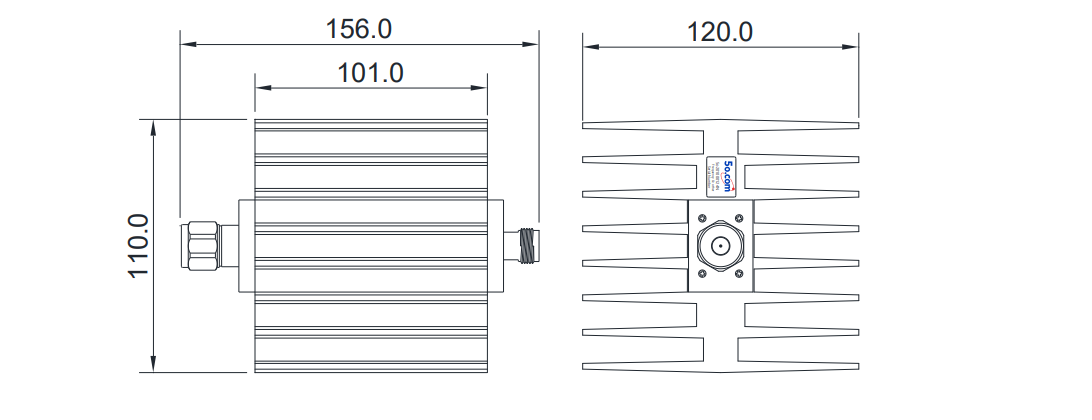

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)


    Power Derating Diagram

    Power Derating Diagram.png

    Notes

    ◆Coaxial attenuator impedance matched to 50Ω.

    ◆If necessary, the product shall be air-cooled for auxiliary heat dissipation.

    ◆For products with a power of over 50W, pay attention to the direction during use and strictly avoid reverse connection.

    ◆Custom design is available upon request.

    ◆It supports a one-year standard warranty.

    .
