Waveguide Circulator 10.0 ~ 15.0GHz

 Application

▶RF power amplifier protection.

▶Digital, Satellite, Mobile Communication.

▶Medical, Communication, Security.

▶Military, Space and Commercial applications.

RF Characteristics

Part Number

Frequency Range (GHz)

Isolation
  Min(dB)

VSWR
  Max

Insertion Loss
  Max(dB)

Connector

Type

5o16444401012

10.0 ~ 12.0

23

1.2

0.3

WR75(BJ120)

5o16444401011

10.0 ~ 11.0

23

1.2

0.3

WR75(BJ120)

5o16444401071275

10.7 ~ 12.75

23

1.2

0.3

WR75(BJ120)

5o16444401112.4

11.0 ~ 12.4

20

1.2

0.35

WR75(BJ120)

5o1644440124138

12.4 ~ 13.8

20

1.2

0.35

WR75(BJ120)

5o164444013751425

13.75 ~ 14.25

23

1.2

0.3

WR75(BJ120)

5o16444401415

14.0 ~ 15.0

23

1.2

0.3

WR75(BJ120)

Basic Specifications

Dimension

44.5*44.5*38.1mm

Impedance

50Ω

Forward Power

100W

Operating Temperature

-40 ~ +85℃

Reverse Power

100W

Storage Temperature

-55~+125℃

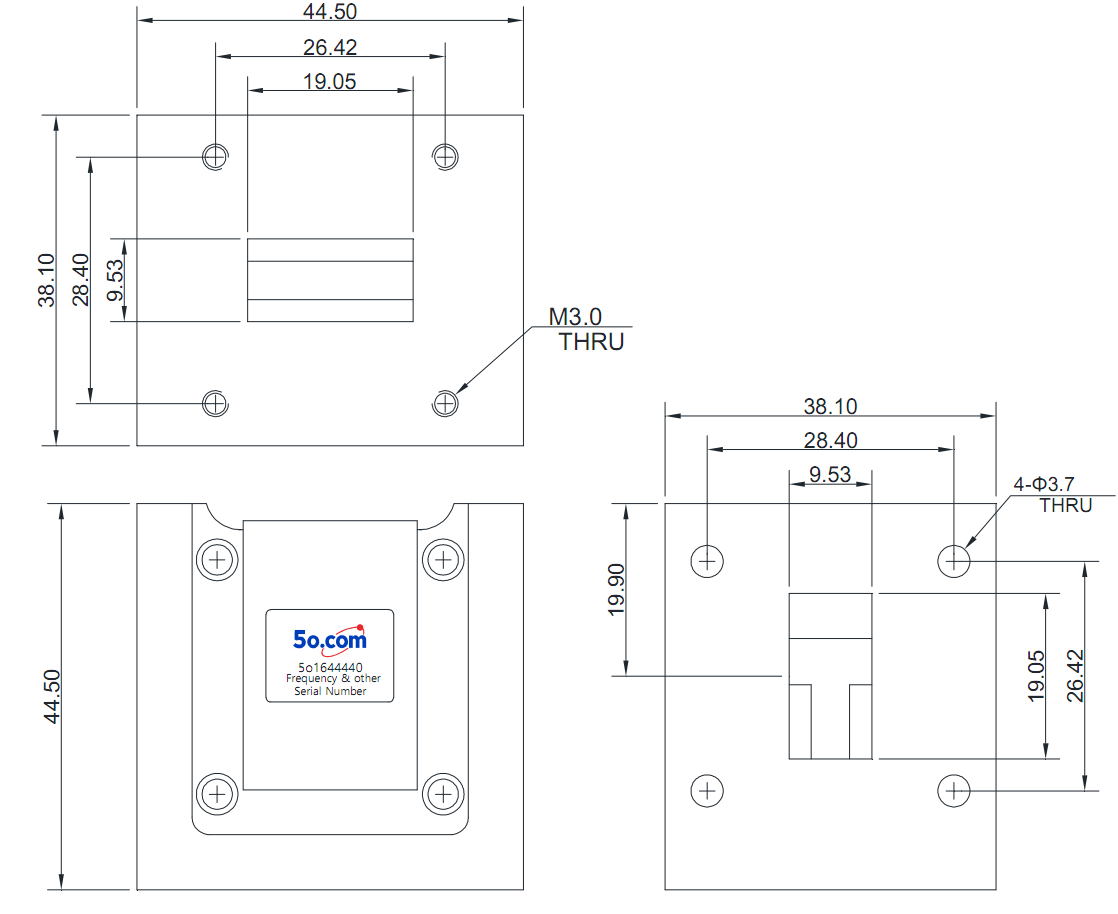

Overall Dimension(mm,Tolerances: ±2% unless otherwise stated.)


Instructions

◆The waveguide isolator shall be accurately mated with the matching waveguide flange.

◆During installation, ensure the flange surface is clean and free of impurities (e.g., metal debris, dust). The flange connecting bolts shall be tightened evenly to prevent radio frequency (RF) leakage and excessive voltage standing wave ratio (VSWR) caused by poor sealing or uneven stress.

◆Only some common frequencies in the table can be produced according to the user's requirements.

◆ It supports a one-year standard warranty.
