    Waveguide Circulator 12.4 ~ 18.0GHz

     Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    5o16383801241375

    12.4 ~ 13.75

    20

    1.2

    0.35

    WR62(BJ140)

    5o16383801375145

    13.75 ~ 14.5

    23

    1.2

    0.3

    WR62(BJ140)

    5o1638380145155

    14.5 ~ 15.5

    23

    1.2

    0.3

    WR62(BJ140)

    5o16383801518

    15.0 ~ 18.0

    20

    1.2

    0.35

    WR62(BJ140)

    5o1638380155165

    15.5 ~ 16.5

    23

    1.2

    0.3

    WR62(BJ140)

    5o1638380165175

    16.5 ~ 17.5

    23

    1.2

    0.3

    WR62(BJ140)

    Basic Specifications

    Dimension

    38*38*33mm

    Impedance

    50Ω

    Forward Power

    100W

    Operating Temperature

    -40 ~ +85℃

    Reverse Power

    100W

    Storage Temperature

    -55~+125℃

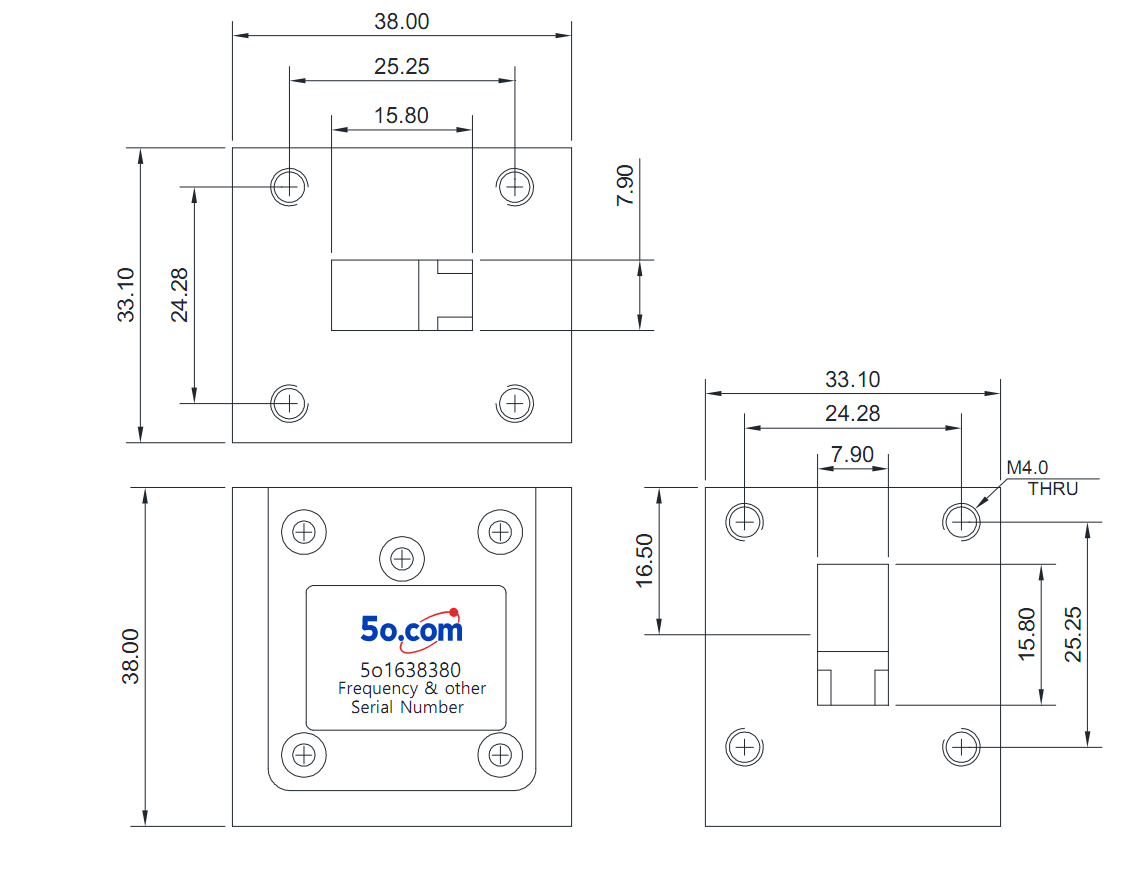

    Overall Dimension(mm,Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆The waveguide isolator shall be accurately mated with the matching waveguide flange.

    ◆During installation, ensure the flange surface is clean and free of impurities (e.g., metal debris, dust). The flange connecting bolts shall be tightened evenly to prevent radio frequency (RF) leakage and excessive voltage standing wave ratio (VSWR) caused by poor sealing or uneven stress.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆ It supports a one-year standard warranty.
