    Waveguide Circulator 21.7 ~33.0GHz

     Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.


    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    5o16303012223

    22.0 ~ 23.0

    20

    1.2

    0.3

    WR34(BJ260)

    5o16303012426

    24.0 ~ 26.0

    20

    1.2

    0.3

    WR34(BJ260)

    5o16303012527

    25.0 ~ 27.0

    20

    1.2

    0.3

    WR34(BJ260)

    5o16303012729

    27.0 ~ 29.0

    20

    1.2

    0.3

    WR34(BJ260)

    5o16303012731

    27.0 ~ 31.0

    20

    1.25

    0.4

    WR34(BJ260)

    5o16303012931

    29.0 ~ 31.0

    20

    1.2

    0.3

    WR34(BJ260)

    5o16303013033

    30.0 ~ 33.0

    20

    1.2

    0.3

    WR34(BJ260)

    Basic Specifications

    Dimension

    30*30*22.4mm

    Impedance

    50Ω

    Forward Power

    60W

    Operating Temperature

    -40 ~ +70℃

    Reverse Power

    60W

    Storage Temperature

    -55~+125℃

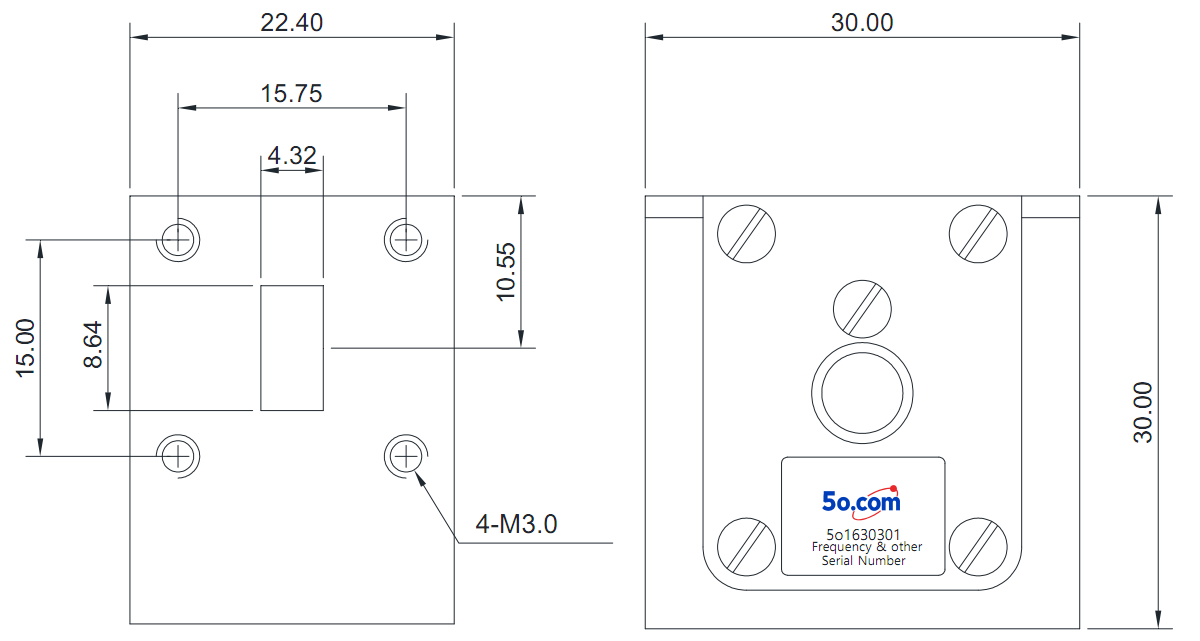

    Overall Dimension(mm,Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (SMA Male/ Female, N Male/ Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
