    Waveguide Circulator 26.0 ~ 40.0GHz



     Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    5o16222512630

    26.0 ~ 30.0

    20

    1.2

    0.3

    WR28(BJ320)

    5o162225126534

    26.5 ~ 34.0

    17

    1.3

    0.4

    WR28(BJ320)

    5o16222512731

    27.0 ~ 31.0

    20

    1.2

    0.3

    WR28(BJ320)

    5o16222512832

    28.0 ~ 32.0

    20

    1.2

    0.3

    WR28(BJ320)

    5o16222512933

    29.0 ~ 33.0

    20

    1.2

    0.3

    WR28(BJ320)

    5o16222513337

    33.0 ~ 37.0

    20

    1.2

    0.3

    WR28(BJ320)

    5o16222513640

    36.0 ~ 40.0

    20

    1.2

    0.3

    WR28(BJ320)

    Basic Specifications

    Dimension

    22.5*25*25.9mm

    Impedance

    50Ω

    Forward Power

    80W

    Operating Temperature

    -40 ~ +85℃

    Reverse Power

    80W

    Storage Temperature

    -55~+125℃

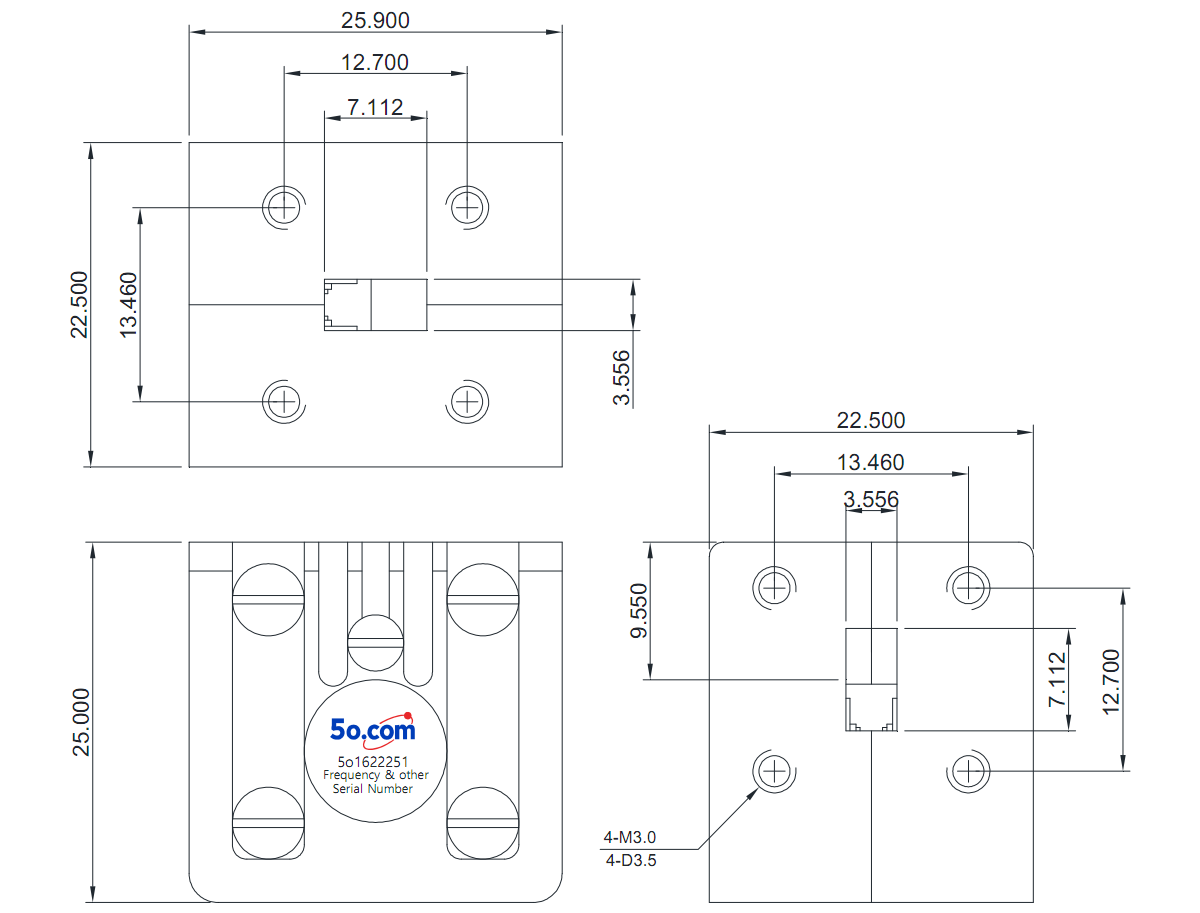

    Overall Dimension(mm,Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (SMA Male/ Female, N Male/ Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
