    Microstrip Circulator 6.0 ~ 18.0GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o15771618

    6.0 ~ 18.0

    12

    1.65

    1

    Microstrip

    25±5

    10

    1.75

    1.2

    -40 ~ +70

    Basic Specifications

    Dimension

    7*7*3mm

    Impedance

    50Ω

    Forward Power

    AVG 20W Peak 40W

    Operating   Temperature

    -40 ~ +70℃

    Reverse   Power

    AVG 20W Peak 40W

    Storage Temperature

    -55~+125℃

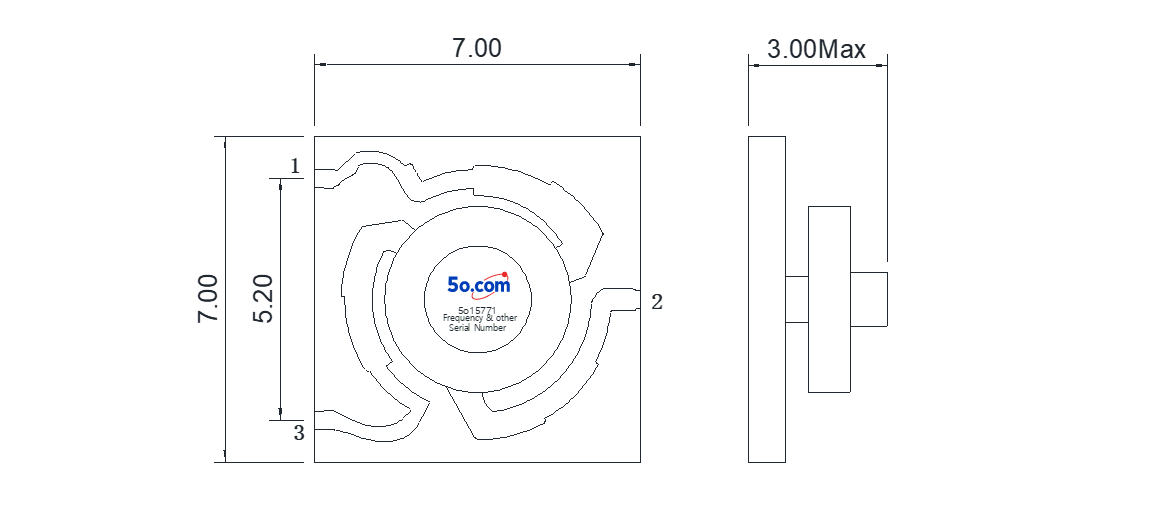

    Overall Dimension(mm,Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆The microstrip isolator/circulator is installed via gold wire bonding.

    ◆Avoid strong magnetic fields near the product during installation/use, as they may alter the bias magnetic field and affect performance.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
