    Microstrip Circulator 22.0 to 32.0GHz

     Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.


    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    5o154422228

    22.0 ~ 28.0

    17

    1.35

    0.7

    Microstrip

    5o154422731

    27.0 ~ 31.0

    17

    1.35

    0.7

    Microstrip

    5o154422832

    28.0 ~ 32.0

    17

    1.35

    0.7

    Microstrip

    Basic Specifications

    Dimension

    4.5*4.5*3.5mm

    Impedance

    50Ω

    Forward Power

    2 W Peak 10W

    Operating   Temperature

    -55 ~ +85℃

    Reverse   Power

    2 W Peak 10W

    Storage Temperature

    -55~+125℃

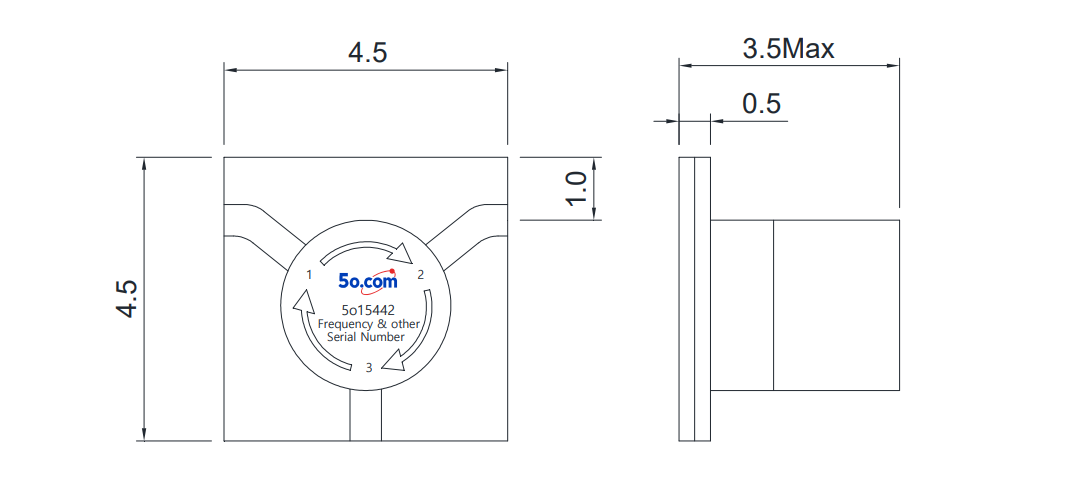

    Overall Dimension(mm,Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (SMA Male/ Female, N Male/ Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
