    Surface Mount Circulator 4.8 ~ 12.0GHz

     Application



    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o14914858

    4.8 ~ 5.8

    18

    1.3

    0.5

    SMT

    -20 ~ +60

    5o14914959

    4.9 ~ 5.9

    18

    1.3

    0.5

    SMT

    -20 ~ +60

    5o1491555

    5.0 ~ 5.5

    20

    1.25

    0.4

    SMT

    -20 ~ +60

    5o149156

    5.0 ~ 6.0

    18

    1.3

    0.5

    SMT

    -20 ~ +60

    5o1491556

    5.5 ~ 6.0

    20

    1.25

    0.4

    SMT

    -20 ~ +60

    5o149167

    6.0 ~ 7.0

    18

    1.3

    0.5

    SMT

    -20 ~ +60

    5o14917984

    7.9 ~ 8.4

    20

    1.25

    0.4

    SMT

    -40 ~ +85

    5o14918595

    8.5 ~ 9.5

    20

    1.25

    0.4

    SMT

    -40 ~ +85

    5o149187105

    8.7 ~ 10.5

    18

    1.3

    0.5

    SMT

    -20 ~ +60

    5o1491910

    9.0 ~ 10.0

    20

    1.25

    0.4

    SMT

    -40 ~ +85

    5o149110105

    10.0 ~ 10.5

    20

    1.25

    0.4

    SMT

    -40 ~ +85

    Basic Specifications

    Dimension

    Φ9*6.5mm

    Impedance

    50Ω

    Forward Power

    30W

    Operating   Temperature

    -40 ~ +85℃

    Reverse   Power

    30W

    Storage Temperature

    -55~+125℃

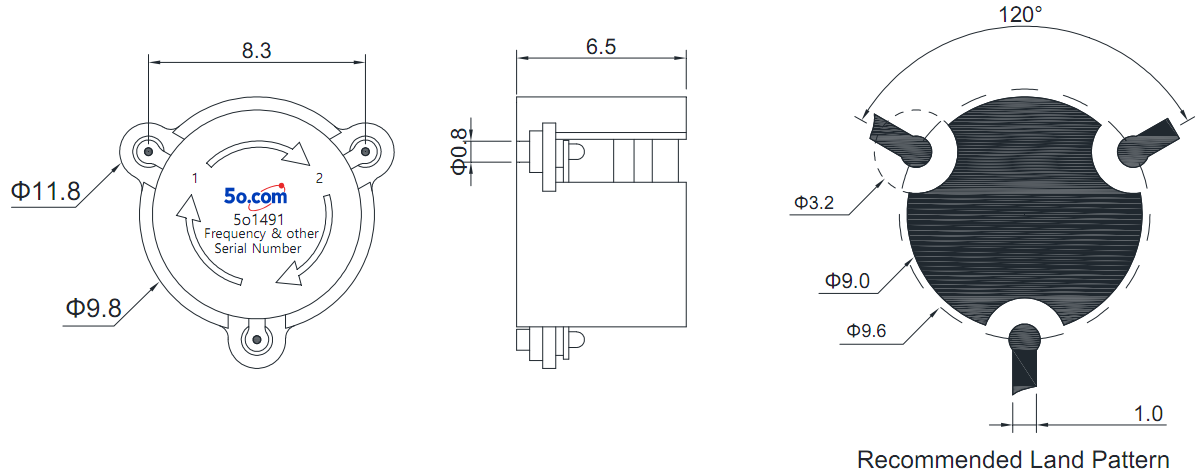

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated.

    Instructions

    ◆When surface mount isolators/circulators use reflow soldering technology, the maximum temperature shall not exceed 260 degrees.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
