    Surface Mount Circulator 2.4 ~ 6.0GHz

     Application



    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    5o14702496269

    2.496 ~ 2.69

    20

    1.22

    0.35

    SMT

    5o14703336

    3.3 ~ 3.6

    20

    1.22

    0.35

    SMT

    5o14703338

    3.4 ~ 3.6

    20

    1.22

    0.35

    SMT

    3.3 ~ 3.8

    16

    1.4

    0.5

    5o1470485

    4.8 ~ 5.0

    20

    1.22

    0.35

    SMT

    5o1470555

    5.0 ~ 5.5

    20

    1.22

    0.35

    SMT

    5o1470556

    5.5 ~ 6.0

    20

    1.22

    0.35

    SMT

    Basic Specifications

    Dimension

    Φ7*6mm

    Impedance

    50Ω

    Forward Power

    15W

    Operating   Temperature

    -40 ~ +105℃

    Reverse   Power

    15W

    Storage Temperature

    -55~+125℃

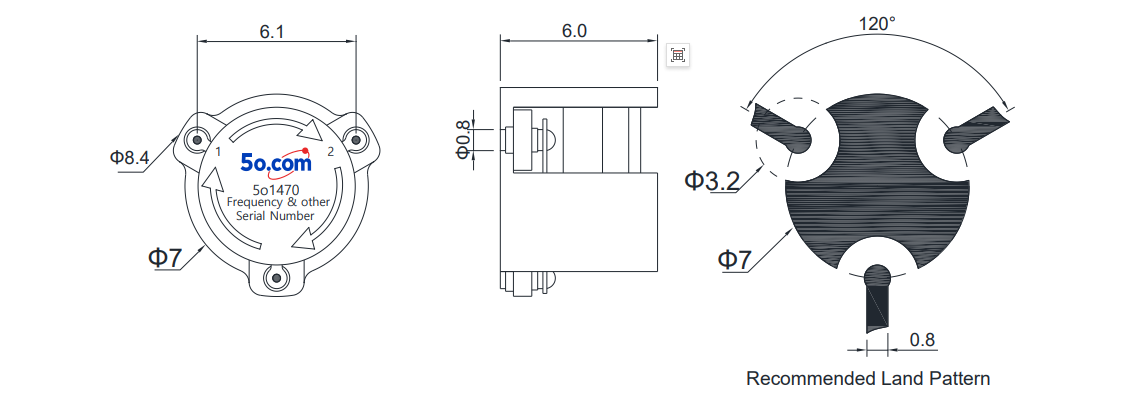

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated.

    Instructions

    ◆When surface mount isolators/circulators use reflow soldering technology, the maximum temperature shall not exceed 260 degrees.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
