    Surface Mount Circulator 700 ~ 5000MHz

     Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    5o14150703748

    703 ~ 748

    18

    1.3

    0.5

    SMT

    5o14150758803

    758 ~ 803

    18

    1.3

    0.5

    SMT

    5o14150791862

    791 ~ 862

    20

    1.25

    0.5

    SMT

    5o14150824894

    824 ~ 894

    20

    1.25

    0.5

    SMT

    5o14150880960

    880 ~ 960

    20

    1.25

    0.5

    SMT

    5o1415012301250

    1230 ~ 1250

    20

    1.25

    0.4

    SMT

    5o1415013301390

    1330 ~ 1390

    20

    1.25

    0.4

    SMT

    5o1415014271517

    1427 ~ 1517

    20

    1.25

    0.4

    SMT

    5o1415015651585

    1565 ~ 1585

    23

    1.2

    0.3

    SMT

    5o1415016161620

    1616 ~ 1620

    23

    1.2

    0.3

    SMT

    5o1415017101785

    1710 ~ 1785

    23

    1.2

    0.3

    SMT

    5o1415017102170

    1710 ~ 2170

    18

    1.3

    0.5

    SMT

    5o1415018051880

    1805 ~ 1880

    23

    1.2

    0.3

    SMT

    5o1415019201990

    1920 ~ 1990

    23

    1.2

    0.3

    SMT

    5o1415021102170

    2110 ~ 2170

    23

    1.2

    0.3

    SMT

    5o1415023002500

    2300 ~ 2500

    23

    1.2

    0.3

    SMT

    5o1415024002600

    2400 ~ 2600

    23

    1.2

    0.3

    SMT

    5o1415024962690

    2496 ~ 2690

    23

    1.2

    0.3

    SMT

    5o1415025002700

    2500 ~ 2700

    23

    1.2

    0.3

    SMT

    5o1415027003100

    2700 ~ 3100

    20

    1.25

    0.5

    SMT

    5o1415029003300

    2900 ~ 3300

    20

    1.25

    0.4

    SMT

    5o1415031003600

    3100 ~ 3600

    20

    1.25

    0.4

    SMT

    5o1415033003600

    3300 ~ 3600

    23

    1.2

    0.3

    SMT

    5o1415037004000

    3700 ~ 4000

    23

    1.2

    0.3

    SMT

    5o1415042004400

    4200 ~ 4400

    21

    1.2

    0.3

    SMT

    5o1415044005000

    4400 ~ 5000

    20

    1.25

    0.4

    SMT

    5o1415048005000

    4800 ~ 5000

    23

    1.2

    0.3

    SMT

     Basic Specifications

    Dimension

    Φ15.5*7mm

    Impedance

    50Ω

    Forward Power

    60W

    Operating   Temperature

    -40 ~ +85℃

    Reverse   Power

    60W

    Storage Temperature

    -55~+125℃

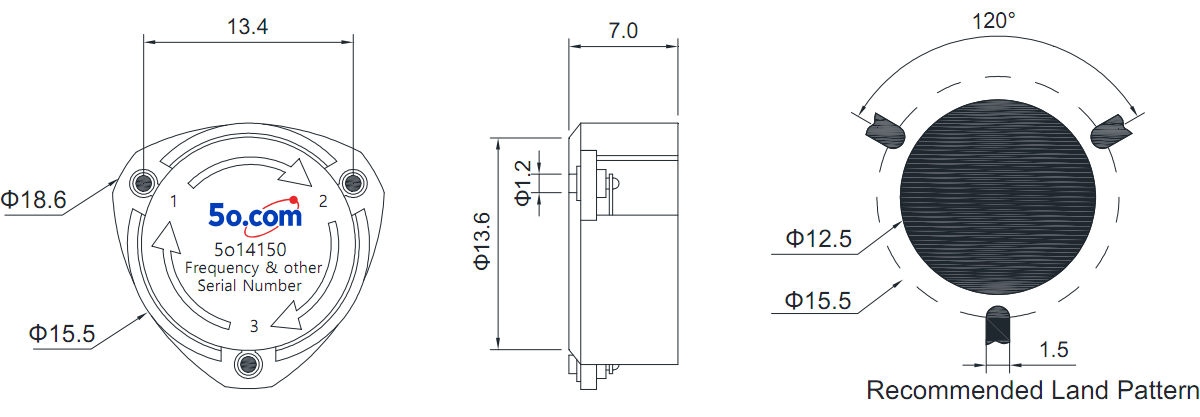

    Overall Dimension(mm)


    Instructions                                                                                                                  Tolerances: ±2% unless otherwise stated.

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (SMA Male/ Female, N Male/ Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
