Part Number

Frequency Range (MHz)

Isolation
  Min(dB)

VSWR
  Max

Insertion Loss
  Max(dB)

Connector

Type

5o14120703748

703 ~ 748

16

1.4

0.7

SMT

5o14120758803

758 ~ 803

16

1.4

0.6

SMT

5o14120791862

791 ~ 862

16

1.4

0.7

SMT

5o14120824894

824 ~ 894

18

1.3

0.55

SMT

5o14120880960

880 ~ 960

16

1.3

0.5

SMT

5o141209901130

990 ~ 1130

15

1.5

0.7

SMT

5o1412012301350

1230 ~ 1350

18

1.3

0.4

SMT

5o1412013301390

1330 ~ 1390

20

1.25

0.4

SMT

5o1412014271517

1427 ~ 1517

20

1.25

0.4

SMT

5o1412015651585

1565 ~ 1585

23

1.2

0.3

SMT

5o1412016161620

1616 ~ 1620

23

1.2

0.3

SMT

5o1412017101785

1710 ~ 1785

23

1.2

0.3

SMT

5o1412018051880

1805 ~ 1880

23

1.2

0.3

SMT

5o1412018052170

1805 ~ 2170

18

1.3

0.5

SMT

5o1412019201990

1920 ~ 1990

23

1.2

0.3

SMT

5o1412021102170

2110 ~ 2170

23

1.2

0.3

SMT

5o1412023002500

2300 ~ 2500

23

1.2

0.3

SMT

5o1412024002600

2400 ~ 2600

23

1.2

0.3

SMT

5o1412024962690

2496 ~ 2690

23

1.2

0.3

SMT

5o1412025002700

2500 ~ 2700

23

1.2

0.3

SMT

5o1412027003100

2700 ~ 3100

21

1.25

0.4

SMT

5o1412029003300

2900 ~ 3300

20

1.25

0.4

SMT

5o141203136

3100 ~ 3600

20

1.25

0.4

SMT

5o141203336

3300 ~ 3600

23

1.2

0.3

SMT

5o141203742

3700 ~ 4200

23

1.2

0.3

SMT

5o141204244

4200 ~ 4400

21

1.2

0.3

SMT

5o14120445

4400 ~ 5000

20

1.25

0.4

SMT

5o14120485

4800 ~ 5000

23

1.2

0.3

SMT

5o14120555

5000 ~ 5500

23

1.2

0.3

SMT

5o1412056

5000 ~ 6000

19

1.25

0.4

SMT

5o14120556

5500 ~ 6000

23

1.2

0.3

SMT

5o141205862

5800 ~ 6200

20

1.25

0.4

SMT

5o141206268

6200 ~ 6800

20

1.25

0.4

SMT

5o14120657

6500 ~ 7000

20

1.25

0.4

SMT

5o1412078

7000 ~ 8000

20

1.25

0.4

SMT

5o141207984

7900 ~ 8400

20

1.25

0.4

SMT

5o141208595

8500 ~ 9500

20

1.25

0.4

SMT

5o14120910

9000 ~ 10000

20

1.25

0.4

SMT

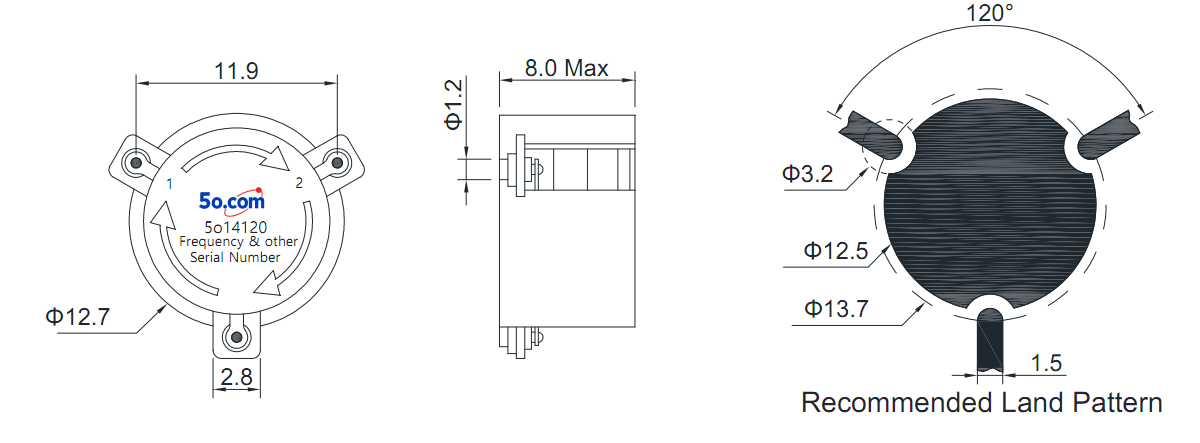

Dimension

Φ12.7*8mm

Impedance

50Ω

Forward Power

30W

Operating   Temperature

-40 ~ +85℃

Reverse   Power

30W

Storage Temperature

-55~+125℃
