Part   Number

Frequency   Range (MHz)

Isolation
  Min(dB)

VSWR
  Max

Insertion   Loss
  Max(dB)

Connector

Type

Temp.(°C)

5o13703804220240NK

220 ~ 240

36

1.3

1.3

N Female

-20 ~ +65

5o13703804240260NK

240 ~ 260

36

1.3

1.0

N Female

-20 ~ +65

5o13703804260280NK

260 ~ 280

40

1.25

1.0

N Female

-20 ~ +65

5o13703804309339NK

309 ~ 339

40

1.25

0.8

N Female

-20 ~ +65

5o13703804350370NK

350 ~ 370

42

1.2

0.7

N Female

-20 ~ +65

5o13703804380460SK

380 ~ 460

36

1.3

1.0

SMA Female

-20 ~ +65

5o13703804390410SK

390 ~ 410

46

1.2

0.6

SMA Female

-30 ~ +70

5o13703804400470SK

400 ~ 470

40

1.25

0.8

SMA Female

-30 ~ +70

5o13703804413419SK

413 ~ 419

60

1.15

0.6

SMA Female

-30 ~ +70

5o13703804413419NKNJNKNK

413 ~ 419

60

1.15

0.6

N Male @Port 2
  N Female @Other

-30 ~ +70

5o13703804419425NKNJNKNK

419 ~ 425

60

1.15

0.6

N Male @Port 2
  N Female @Other

-30 ~ +70

5o13703804450520NK

450 ~ 520

40

1.25

0.8

N Female

-20 ~ +65

5o13703804600800SK

600 ~ 800

38

1.25

1.0

SMA Female

-20 ~ +65

5o13703804700900SK

700 ~ 900

40

1.25

0.8

SMA Female

-30 ~ +70

5o137038047001000SK

700 ~ 1000

32

1.4

1.2

SMA Female

-20 ~ +65

5o13703804770860SK

770 ~ 860

46

1.2

0.6

SMA Female

-30 ~ +70

5o13703804860872SK

860 ~ 872

60

1.15

0.5

SMA Female

-20 ~ +65

5o13703804900930SK

900 ~ 930

60

1.15

0.4

SMA Female

-40 ~ +85

5o1370380410001300NK

1000 ~ 1300

40

1.25

0.8

N Female

-30 ~ +70

5o1370380410001700NK

1000 ~ 1700

30

1.45

1.0

N Female

-30 ~ +70

5o1370380412961298NK

1296 ~ 1298

50

1.15

0.6

N Female

-40 ~ +85

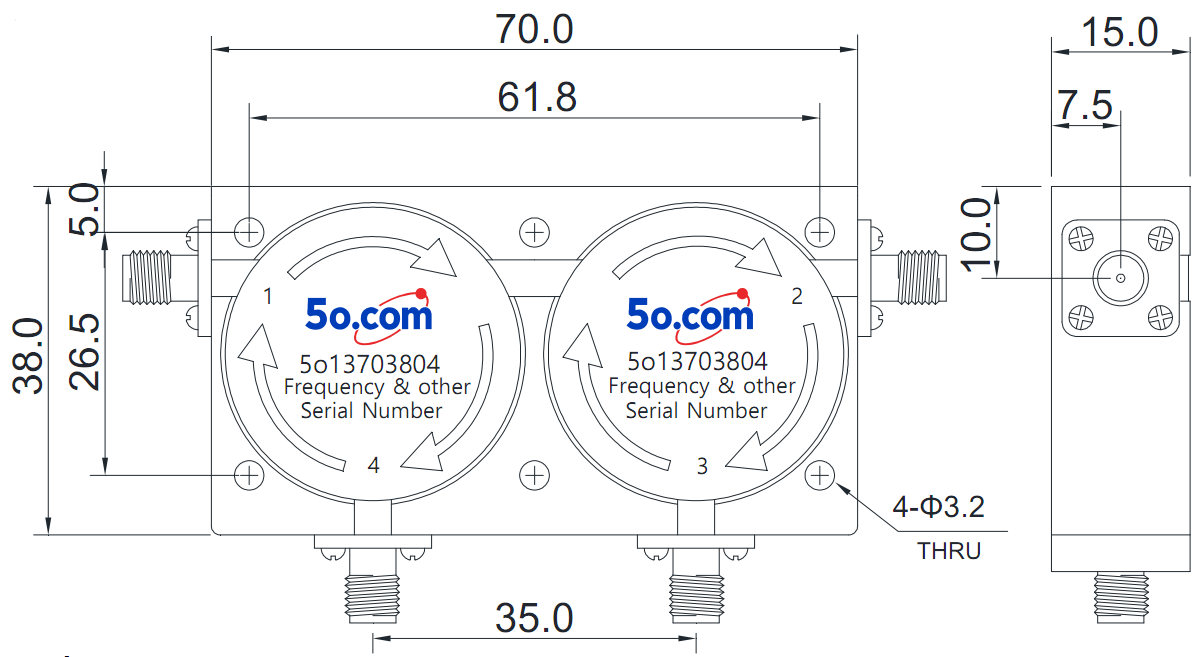

Dimension

70*38*15mm

Impedance

50Ω

Forward Power

300W

Connector   Type

N, SMA(Female/Male)

Reverse   Power

300W

Storage Temperature

-55~+125℃
