Part   Number

Frequency   Range (MHz)

Isolation

(2-1   & 4-3)
  Min(dB)

VSWR
  Max

Insertion   Loss

(1-2   & 3-4)
  Max(dB)

Connector

Type

Temp.(°C)

5o13683404700900SK

700 ~ 900

36

1.3

0.8

SMA Female

-30 ~ +70

5o136834048001000NK

800 ~ 1000

40

1.25

0.8

N Female

-30 ~ +70

5o13683404805870NK

805 ~ 870

45

1.2

0.6

N Female

-40 ~ +85

5o136834048501150SJSKSKSK

850 ~ 1150

36

1.3

1.2

SMA Male @Port 1
  SMA Female @Other

-30 ~ +70

5o13683404860960SK

860 ~ 960

45

1.2

0.6

SMA Female

-40 ~ +85

5o136834049001200SK

900 ~ 1200

40

1.25

1.0

SMA Female

-30 ~ +70

5o136834049001300SK

900 ~ 1300

36

1.3

1.2

SMA Female

-30 ~ +70

5o136834049501415SK

950 ~ 1415

36

1.4

1.2

SMA Female

0 ~ +60

5o136834049501450SK

950 ~ 1450

32

1.4

1.2

SMA Female

0 ~ +60

5o136834049601215NK

960 ~ 1215

40

1.25

0.8

N Female

-30 ~ +70

5o1368340410001500SK

1000 ~ 1500

36

1.4

1.2

SMA Female

0 ~ +60

5o1368340412251875SK

1225 ~ 1875

32

1.4

1.2

SMA Female

0 ~ +60

5o1368340413501850SK

1350 ~ 1850

36

1.3

1.0

SMA Female

0 ~ +60

5o1368340412901710SK

1290 ~ 1710

40

1.25

1.0

SMA Female

0 ~ +60

5o1368340413001740SK

1300 ~ 1740

40

1.25

1.0

SMA Female

0 ~ +60

5o1368340413001800SK

1300 ~ 1800

36

1.3

1.0

SMA Female

0 ~ +60

5o1368340413501850SK

1350 ~ 1850

36

1.3

1.0

SMA Female

0 ~ +60

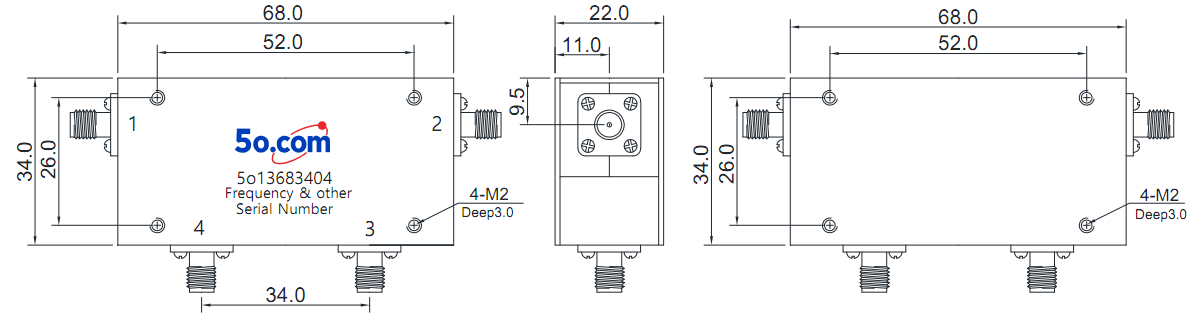

Dimension

68*34*22mm

Impedance

50Ω

Forward Power

200W

Connector   Type

N, SMA(Female/Male)

Reverse   Power

200W

Storage Temperature

-55~+125℃
