    Dual Junction Coaxial Circulator 12.0 ~ 18.0GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    2-1

    1-3

    3-2

    3-1

    1-2

    2-3

    5o13261821218SK

    12.0   ~ 18.0

    36

    18

    1.3

    1.0

    0.5

    SMA Female

    -55 ~ +85

    5o13261821218SJSKSK

    12.0   ~ 18.0

    36

    18

    1.3

    1.0

    0.5

    SMA Male @Port 1
      SMA Female @Other

    -55 ~ +85

    5o13261821218SKSJSK

    12.0   ~ 18.0

    36

    18

    1.3

    1.0

    0.5

    SMA Male @Port 1
      SMA Female @Other

    -55 ~ +85

    Basic Specifications

    Dimension

    26*18*13.8mm

    Impedance

    50Ω

    Forward Power

    60W

    Connector   Type

    SMA(Female/Male)

    Reverse   Power

    60W

    Storage Temperature

    -55~+125℃

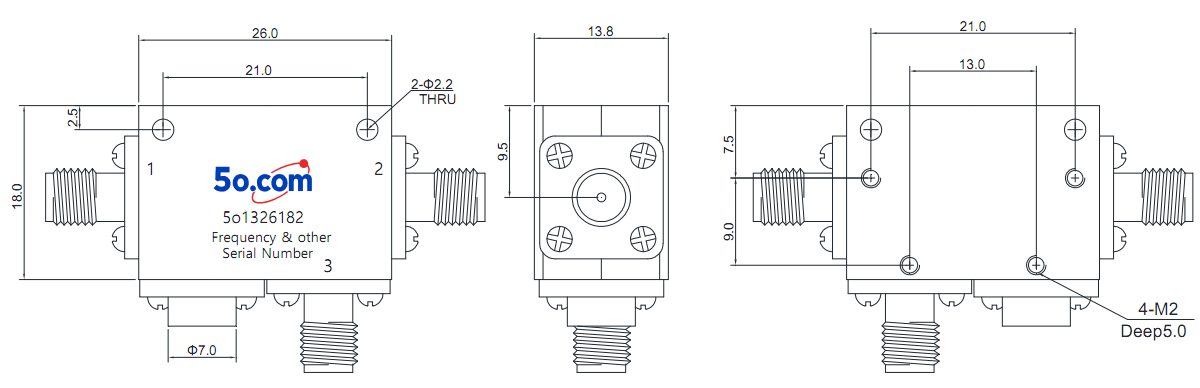

    Overall Dimension(mm,Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (SMA Male/Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
