    3 Port Dual Junction Coaxial Circulator 6.0 ~ 27.5GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part   Number

    Frequency   Range (GHz)

    Isolation

    (2-1)
      Min(dB)

    VSWR
      Max

    Insertion   Loss

    (1-2)
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o132618068SK

    6.0 ~ 8.0

    36

    1.3

    1.0

    SMA Female

    -55 ~ +85

    5o132618079SK

    7.0 ~ 9.0

    40

    1.25

    1.0

    SMA Female

    -55 ~ +85

    5o13261807477SK

    7.4 ~ 7.7

    45

    1.2

    0.6

    SMA Female

    -55 ~ +85

    5o13261807886SK

    7.8 ~ 8.6

    45

    1.2

    0.6

    SMA Female

    -55 ~ +85

    5o1326180810SK

    8.0 ~ 10.0

    40

    1.2

    0.8

    SMA Female

    -55 ~ +85

    5o1326180811SK

    8.0 ~ 11.0

    40

    1.25

    0.8

    SMA Female

    -55 ~ +85

    5o1326180812SK

    8.0 ~ 12.0

    36

    1.3

    1.0

    SMA Female

    -55 ~ +85

    5o1326180910SK

    9.0 ~ 10.0

    45

    1.2

    0.6

    SMA Female

    -55 ~ +85

    5o1326180911SK

    9.0 ~ 11.0

    40

    1.2

    0.8

    SMA Female

    -55 ~ +85

    5o13261809395SJ

    9.3 ~ 9.5

    45

    1.2

    0.6

    SMA Male

    -55 ~ +85

    5o13261801013SK

    10.0 ~ 13.0

    42

    1.2

    0.8

    SMA Female

    -55 ~ +85

    5o13261801015SKSJSK

    10.0 ~ 15.0

    36

    1.35

    1.2

    SMA Female @Other
      SMA Male @Port 2

    -55 ~ +85

    5o1326180107133SJSKSK

    10.7 ~ 13.3

    45

    1.2

    0.6

    SMA Male @Port 1 SMA Female @Other

    -55 ~ +85

    5o13261801218SK

    12.0 ~ 18.0

    36

    1.3

    1.0

    SMA Female

    -55 ~ +85

    5o13261801375145SK

    13.75 ~ 14.5

    45

    1.2

    0.6

    SMA Female

    -55 ~ +85

    5o1326180138178SK

    13.8 ~ 17.8

    36

    1.3

    1

    SMA Female

    -55 ~ +85

    5o1326180155165SK

    15.5 ~ 16.5

    45

    1.2

    0.6

    SMA Female

    -55 ~ +85

    5o13261801618SK

    16.0 ~ 18.0

    40

    1.25

    1.0

    SMA Female

    -55 ~ +85

    5o13261801820SK

    18.0 ~ 20.0

    40

    1.25

    1.0

    SMA Female

    -55 ~ +85

    5o13261801822SK

    18.0 ~ 22.0

    36

    1.3

    1.2

    SMA Female

    -40 ~ +85

    5o13261802123SK

    21.0 ~ 23.0

    40

    1.25

    1.0

    SMA Female

    -40 ~ +85

    5o13261802224SK

    22.0 ~ 24.0

    40

    1.25

    1.0

    SMA Female

    -40 ~ +85

    5o13261802325SK

    23.0 ~ 25.0

    40

    1.25

    1.0

    SMA Female

    -40 ~ +85

    5o13261802426KK

    24.0 ~ 26.0

    40

    1.25

    1.0

    2.92mm Female

    -40 ~ +85

    5o13261802425275KK

    24.25 ~ 27.5

    36

    1.3

    1.2

    2.92mm Female

    -40 ~ +85

    5o13261802527KK

    25.0 ~ 27.0

    40

    1.25

    1.0

    2.92mm Female

    -40 ~ +85

    Basic Specifications

    Dimension

    26*18*13.8mm

    Impedance

    50Ω

    Forward Power

    60W

    Connector Type

    SMA, 2.92mm(Female/Male)

    Reverse Power

    60W

    Storage Temperature

    -55~+125℃

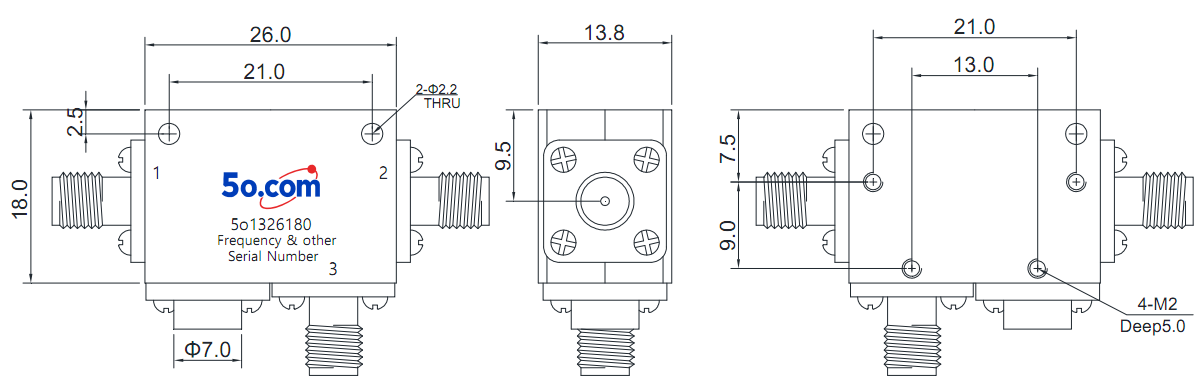

    Overall Dimension(mm,Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (SMA Male/Female, /2.92mm, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
