    4 Port Dual Junction Coaxial Circulator 10 ~ 55MHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part   Number

    Frequency   Range (MHz)

    Isolation

    (2-1   & 4-3)
      Min(dB)

    VSWR
      Max

    Insertion   Loss

    (1-2   & 3-4)
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o1316080042530SK

    25 ~ 30

    24

    1.45

    7.0

    SMA Female

    +10 ~ +60

    5o1316080042628SK

    26 ~ 28

    30

    1.45

    6.0

    SMA Female

    +10 ~ +60

    5o131608004285305NK

    28.5 ~ 30.5

    32

    1.4

    5.6

    N Female

    +10 ~ +60

    5o1316080043032NK

    30 ~ 32

    32

    1.4

    3.6

    N Female

    +10 ~ +60

    5o1316080043035SK

    30 ~ 35

    32

    1.4

    6.0

    SMA Female

    +10 ~ +60

    5o1316080043545SK

    35 ~ 45

    40

    1.4

    5.0

    SMA Female

    +10 ~ +60

    5o1316080044450NKNJNKNK

    44 ~ 50

    40

    1.25

    2.4

    N Male @Port 2

    25±5

    34

    1.35

    3.0

    N Female @Other

    +20 ~ +60

    Basic Specifications

    Dimension

    160*80*28mm

    Impedance

    50Ω

    Forward Power

    50W

    Connector   Type

    N, SMA(Female/Male)

    Reverse   Power

    50W

    Storage Temperature

    -55~+125℃

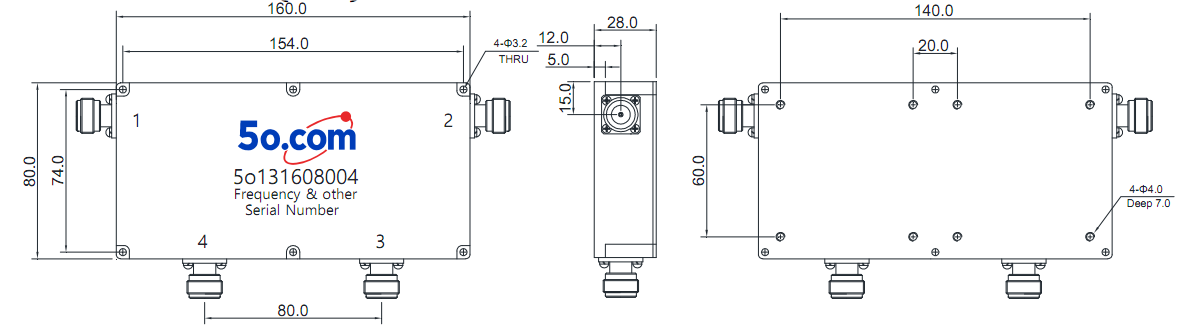

    Overall Dimension(mm,Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (SMA Female, N Male/ Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
