    4 Port Dual Junction Coaxial Circulator 1.5 ~ 3.0GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part   Number

    Frequency   Range (GHz)

    Isolation

    (2-1   & 4-3)
      Min(dB)

    VSWR
      Max

    Insertion   Loss

    (1-2   & 3-4)
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o131014914153SK

    1.5 ~ 3.0

    34

    1.35

    1.0

    SMA-K

    0 ~ +70

    5o131014914153NK

    1.5 ~ 3.0

    34

    1.35

    1.0

    N-K

    0 ~ +70

     Basic Specifications

    Dimension

    101.6*49.5*19mm

    Impedance

    50Ω

    Forward Power

    100W

    Connector   Type

    N, SMA(Female)

    Reverse   Power

    100W

    Storage Temperature

    -55~+125℃

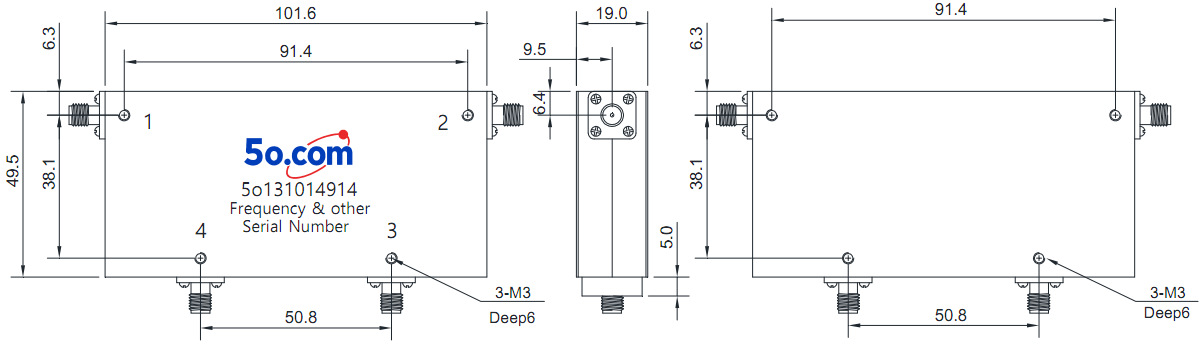

    Overall Dimension(mm,Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (SMA Female, N Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
