Part   Number

Frequency   Range (MHz)

Isolation
  Min(dB)

VSWR
  Max

Insertion   Loss
  Max(dB)

Connector

Type

Temp.(°C)

5o12703804220240

220 ~ 240

36

1.3

1.3

TAB

-20 ~ +65

5o12703804240260

240 ~ 260

36

1.3

1

TAB

-20 ~ +65

5o12703804260280

260 ~ 280

40

1.25

1

TAB

-20 ~ +65

5o12703804309339

309 ~ 339

40

1.25

0.8

TAB

-20 ~ +65

5o12703804350370

350 ~ 370

42

1.2

0.7

TAB

-20 ~ +65

5o12703804380460

380 ~ 460

36

1.3

1

TAB

-20 ~ +65

5o12703804390410

390 ~ 410

46

1.2

0.6

TAB

-30 ~ +70

5o12703804400470

400 ~ 470

40

1.25

0.8

TAB

-30 ~ +70

5o12703804413419

413 ~ 419

60

1.15

0.6

TAB

-30 ~ +70

5o12703804413419

413 ~ 419

60

1.15

0.6

TAB

-30 ~ +70

5o12703804419425

419 ~ 425

60

1.15

0.6

TAB

-30 ~ +70

5o12703804450520

450 ~ 520

40

1.25

0.8

TAB

-20 ~ +65

5o12703804600800

600 ~ 800

38

1.25

1

TAB

-20 ~ +65

5o12703804700900

700 ~ 900

40

1.25

0.8

TAB

-30 ~ +70

5o127038047001000

700 ~ 1000

32

1.4

1.2

TAB

-20 ~ +65

5o12703804770860

770 ~ 860

46

1.2

0.6

TAB

-30 ~ +70

5o12703804860872

860 ~ 872

60

1.15

0.5

TAB

-20 ~ +65

5o12703804900930

900 ~ 930

60

1.15

0.4

TAB

-40 ~ +85

5o1270380410001300

1000 ~ 1300

40

1.25

0.8

TAB

-30 ~ +70

5o1270380410001700

1000 ~ 1700

30

1.45

1

TAB

-30 ~ +70

5o1270380412961298

1296 ~ 1298

50

1.15

0.6

TAB

-40 ~ +85

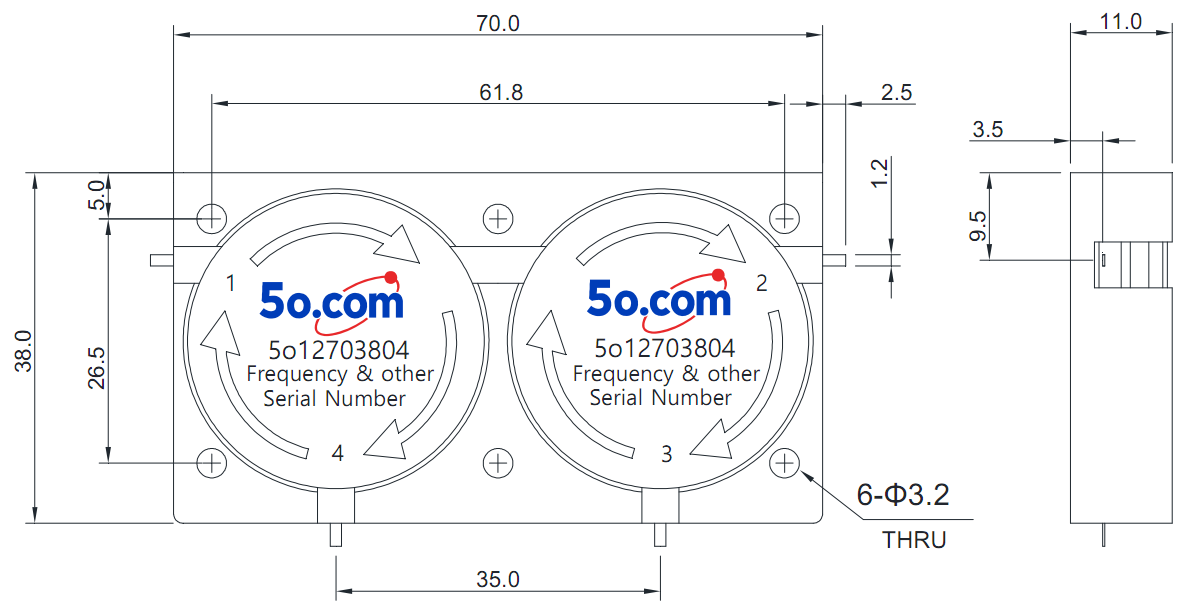

Dimension

70*38*11mm

Impedance

50Ω

Forward Power

300W

Connector   Type

TAB

Reverse   Power

300W

Storage Temperature

-55~+125℃
