    Dual Junction Drop in Circulator 200 ~ 3600MHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part   Number

    Frequency   Range (MHz)

    Isolation

    (2-1&4-3)
      Min(dB)

    VSWR
      Max

    Insertion   Loss

    (1-2&3-4)
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o1250311210220

    210 ~ 220

    36

    1.3

    1.2

    TAB

    -40 ~ +85

    5o1250311220230

    220 ~ 230

    36

    1.3

    1

    TAB

    -40 ~ +85

    5o1250311250270

    250 ~ 270

    36

    1.3

    1

    TAB

    -40 ~ +85

    5o1250311300320

    300 ~ 320

    40

    1.25

    1

    TAB

    -40 ~ +85

    5o1250311350370A30

    350 ~ 370

    40

    1.25

    0.8

    TAB

    -40 ~ +85

    5o1250311400500

    400 ~ 500

    32

    1.4

    1.2

    TAB

    -40 ~ +85

    5o1250311410425

    410 ~ 425

    45

    1.15

    0.6

    TAB

    -40 ~ +85

    5o1250311430470

    430 ~ 470

    40

    1.25

    0.8

    TAB

    -40 ~ +85

    5o1250311490510

    490 ~ 510

    45

    1.15

    0.5

    TAB

    -40 ~ +85

    5o1250311600700

    600 ~ 700

    40

    1.2

    0.6

    TAB

    -40 ~ +85

    5o1250311700803

    700 ~ 803

    45

    1.2

    0.6

    TAB

    -40 ~ +85

    5o12503118001000

    800 ~ 1000

    36

    1.3

    1

    TAB

    -40 ~ +85

    5o1250311860960

    860 ~ 960

    40

    1.25

    0.6

    TAB

    -40 ~ +85

    5o1250311869894A20

    869 ~ 894

    45

    1.2

    0.6

    TAB

    -40 ~ +85

    5o1250311925960

    925 ~ 960

    45

    1.2

    0.6

    TAB

    -40 ~ +85

    5o12503119601230

    960 ~ 1230

    36

    1.3

    1

    TAB

    -40 ~ +85

    5o125031112001300

    1200 ~ 1300

    45

    1.2

    0.6

    TAB

    -40 ~ +85

    5o125031114001600

    1400 ~ 1600

    45

    1.2

    0.6

    TAB

    -40 ~ +85

    5o125031115001700

    1500 ~ 1700

    45

    1.2

    0.6

    TAB

    -40 ~ +85

    5o125031117001900

    1700 ~ 1900

    45

    1.2

    0.6

    TAB

    -40 ~ +85

    5o125031117102170

    1710 ~ 2170

    40

    1.25

    0.8

    TAB

    -40 ~ +85

    5o125031118051880A20

    1805 ~ 1880

    45

    1.15

    0.5

    TAB

    -40 ~ +85

    5o125031118002200

    1800 ~ 2200

    36

    1.3

    1

    TAB

    -40 ~ +85

    5o125031119002200

    1900 ~ 2200

    40

    1.25

    0.7

    TAB

    -40 ~ +85

    5o125031119201990

    1920 ~ 1990

    45

    1.15

    0.5

    TAB

    -40 ~ +85

    5o125031120002500

    2000 ~ 2500

    40

    1.25

    1

    TAB

    -40 ~ +85

    5o125031123002500

    2300 ~ 2500

    45

    1.15

    0.5

    TAB

    -40 ~ +85

    5o125031123002700

    2300 ~ 2700

    45

    1.2

    0.6

    TAB

    -40 ~ +85

    5o125031124002600

    2400 ~ 2600

    45

    1.15

    0.5

    TAB

    -40 ~ +85

    5o125031124962690

    2496 ~ 2690

    45

    1.15

    0.5

    TAB

    -40 ~ +85

    5o125031125002700A30

    2500 ~ 2700

    45

    1.15

    0.5

    TAB

    -40 ~ +85

    5o125031127003100

    2700 ~ 3100

    45

    1.2

    0.6

    TAB

    -40 ~ +85

    5o125031130003600

    3000 ~ 3600

    40

    1.25

    0.6

    TAB

    -40 ~ +85

    Basic Specifications

    Dimension

    50.8*31.7*8.6mm

    Impedance

    50Ω

    Forward Power

    200W

    Connector   Type

    TAB

    Reverse   Power

    100W

    Storage Temperature

    -55~+125℃

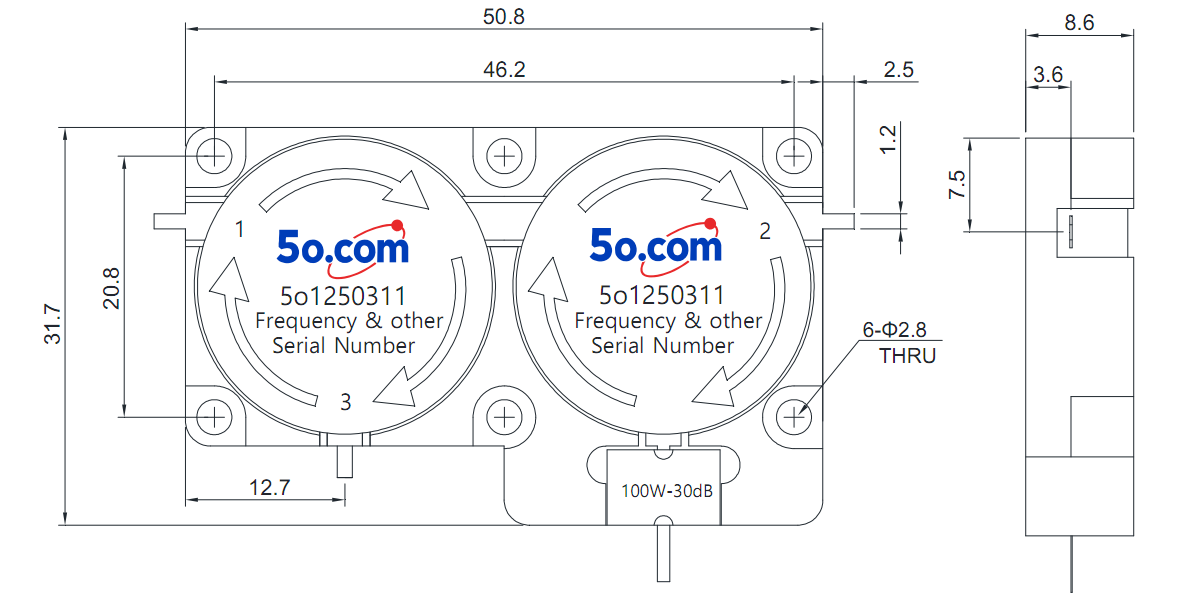

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆It can be dual junction or multiple for high isolation.

    ◆Installing the embedded isolator/circulator, please use stainless steel or brass screws.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
