    4 Port Dual Junction Drop in Circulator 200 ~ 3600MHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part   Number

    Frequency   Range (MHz)

    Isolation

    (2-1   & 4-3)
      Min(dB)

    VSWR
      Max

    Insertion   Loss

    (1-2   & 3-4)
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o12502504210220

    210 ~ 220

    36

    1.3

    1.2

    TAB

    -40 ~ +85

    5o12502504220230

    220 ~ 230

    36

    1.3

    1

    TAB

    -40 ~ +85

    5o12502504250270

    250 ~ 270

    36

    1.3

    1

    TAB

    -40 ~ +85

    5o12502504300320

    300 ~ 320

    40

    1.25

    1

    TAB

    -40 ~ +85

    5o12502504350370

    350 ~ 370

    40

    1.25

    0.8

    TAB

    -40 ~ +85

    5o12502504380460

    380 ~ 460

    34

    1.35

    1

    TAB

    -40 ~ +85

    5o12502504400470

    400 ~ 470

    18

    1.3

    0.5

    TAB

    -40 ~ +85

    5o12502504410425

    410 ~ 425

    46

    1.15

    0.6

    TAB

    -40 ~ +85

    5o12502504430470

    430 ~ 470

    40

    1.25

    0.8

    TAB

    -40 ~ +85

    5o12502504450520

    450 ~ 520

    40

    1.25

    1

    TAB

    -40 ~ +85

    5o12502504490510

    490 ~ 510

    46

    1.15

    0.5

    TAB

    -40 ~ +85

    5o12502504600700

    600 ~ 700

    40

    1.2

    0.6

    TAB

    -40 ~ +85

    5o12502504700803

    700 ~ 803

    46

    1.2

    0.6

    TAB

    -40 ~ +85

    5o125025048001000

    800 ~ 1000

    36

    1.3

    1

    TAB

    -40 ~ +85

    5o12502504860960

    860 ~ 960

    40

    1.25

    0.6

    TAB

    -40 ~ +85

    5o12502504869894

    869 ~ 894

    50

    1.15

    0.4

    TAB

    -40 ~ +85

    5o12502504925960

    925 ~ 960

    50

    1.15

    0.4

    TAB

    -40 ~ +85

    5o125025049501250

    950 ~ 1250

    36

    1.3

    1

    TAB

    -40 ~ +85

    5o1250250412001400

    1200 ~ 1400

    46

    1.2

    0.6

    TAB

    -40 ~ +85

    5o1250250415001700

    1500 ~ 1700

    46

    1.2

    0.6

    TAB

    -40 ~ +85

    5o1250250417102170

    1710 ~ 2170

    40

    1.25

    0.8

    TAB

    -40 ~ +85

    5o1250250418051880

    1805 ~ 1880

    50

    1.15

    0.4

    TAB

    -40 ~ +85

    5o1250250419201990

    1920 ~ 1990

    50

    1.15

    0.4

    TAB

    -40 ~ +85

    5o1250250420002500

    2000 ~ 2500

    40

    1.25

    1

    TAB

    -40 ~ +85

    5o1250250423002500

    2300 ~ 2500

    46

    1.15

    0.5

    TAB

    -40 ~ +85

    5o1250250423002700

    2300 ~ 2700

    46

    1.2

    0.6

    TAB

    -40 ~ +85

    5o1250250424002600

    2400 ~ 2600

    46

    1.15

    0.5

    TAB

    -40 ~ +85

    5o1250250424962690

    2496 ~ 2690

    46

    1.15

    0.5

    TAB

    -40 ~ +85

    5o1250250425002700

    2500 ~ 2700

    46

    1.15

    0.5

    TAB

    -40 ~ +85

    5o1250250427003100

    2700 ~ 3100

    46

    1.15

    0.5

    TAB

    -40 ~ +85

    5o1250250430003600

    3000 ~ 3600

    40

    1.25

    0.6

    TAB

    -40 ~ +85

    Basic Specifications

    Dimension

    50.8*25.4*10.5mm

    Impedance

    50Ω

    Forward Power

    200W

    Connector   Type

    TAB

    Reverse   Power

    200W

    Storage Temperature

    -55~+125℃

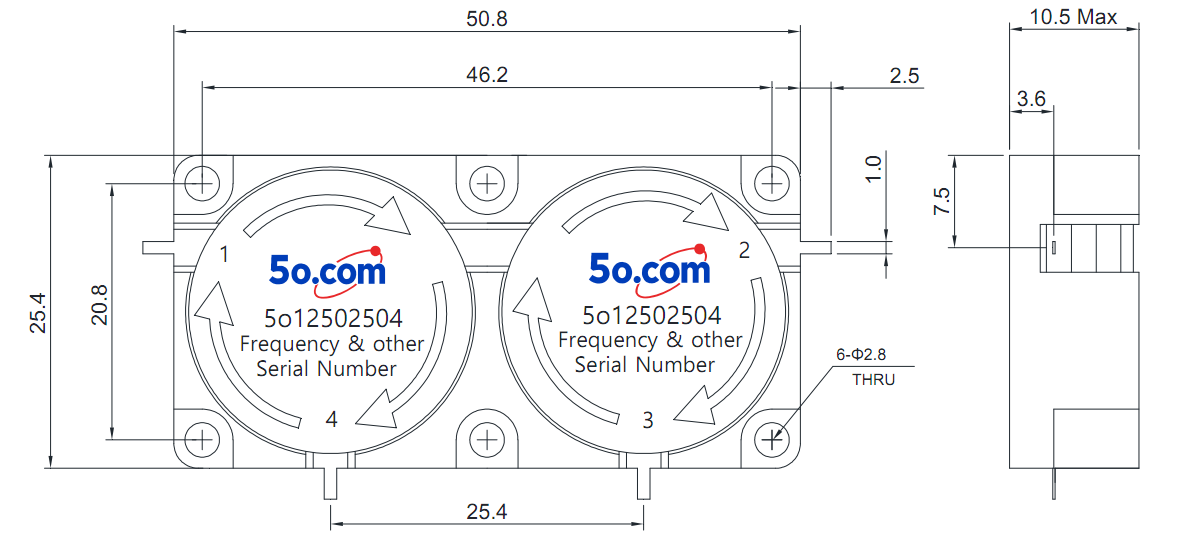

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆It can be dual junction or multiple for high isolation.

    ◆Installing the embedded isolator/circulator, please use stainless steel or brass screws.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
