    4 Port Dual Junction Drop in Circulator 4.0 ~ 7.0GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part   Number

    Frequency   Range (GHz)

    Isolation

    (2-1   & 4-3)
      Min(dB)

    VSWR
      Max

    Insertion   Loss

    (1-2   & 3-4)
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o12242004455

    4.5 ~ 5.0

    40

    1.25

    0.8

    TAB

    -40 ~ +85

    5o122420044752

    4.7 ~ 5.2

    40

    1.25

    0.8

    TAB

    -40 ~ +85

    5o12242004558

    5.0 ~ 5.8

    40

    1.25

    0.8

    TAB

    -40 ~ +85

    5o1224200456

    5.0 ~ 6.0

    36

    1.3

    1

    TAB

    -40 ~ +85

    5o122420045259

    5.2 ~ 5.9

    40

    1.2

    0.8

    TAB

    -40 ~ +85

    5o122420045459

    5.4 ~ 5.9

    45

    1.2

    0.8

    TAB

    -40 ~ +85

    5o12242004556

    5.6 ~ 6.0

    45

    1.2

    0.6

    TAB

    -40 ~ +85

    5o122420045759

    5.7 ~ 5.9

    45

    1.2

    0.6

    TAB

    -40 ~ +85

    5o122420045765

    5.7 ~ 6.5

    40

    1.25

    1

    TAB

    -40 ~ +85

    5o1224200467

    6.0 ~ 7.0

    45

    1.2

    0.7

    TAB

    -40 ~ +85

    5o12242004635655

    6.35 ~ 6.55

    45

    1.2

    0.6

    TAB

    -40 ~ +85

    Basic Specifications

    Dimension

    24*20*8mm

    Forward   Power

    60W

    Reverse   Power

    60W

    Connector   Type

    TAB

    Storage Temperature

    -55℃~+125℃

    Impedance

    50Ω

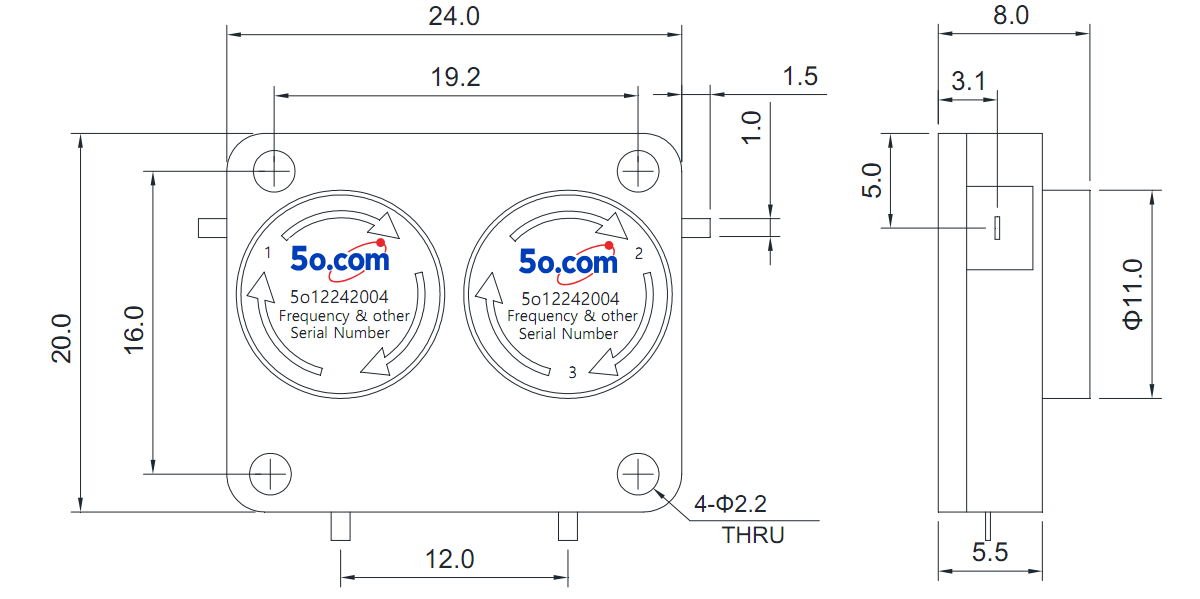

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆It can be dual junction or multiple for high isolation.

    ◆Installing the embedded isolator/circulator, please use stainless steel or brass screws.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
