Part   Number

Frequency   Range (GHz)

Isolation

(2-1   & 4-3)
  Min(dB)

VSWR
  Max

Insertion   Loss

(1-2   & 3-4)
  Max(dB)

Connector

Type

Temp.(°C)

5o12171604555

5.0 ~ 5.5

36

1.3

1

TAB

-40 ~ +85

5o121716045458

5.4 ~ 5.8

36

1.3

1

TAB

-40 ~ +85

5o121716045759

5.7 ~ 5.9

40

1.25

0.7

TAB

-40 ~ +85

5o121716045862

5.8 ~ 6.2

40

1.25

1

TAB

-40 ~ +85

5o1217160468

6.0 ~ 8.0

36

1.3

1.2

TAB

-40 ~ +85

5o1217160479

7.0 ~ 9.0

36

1.3

1

TAB

-40 ~ +85

5o121716047195

7.1 ~ 9.5

36

1.3

1.2

TAB

-55 ~ +85

5o121716047984

7.9 ~ 8.4

46

1.2

0.6

TAB

-55 ~ +85

5o12171604812

8.0 ~ 12.0

36

1.3

1

TAB

-55 ~ +85

5o121716048595

8.5 ~ 9.5

46

1.2

0.6

TAB

-55 ~ +85

5o12171604910

9.0 ~ 10.0

46

1.2

0.6

TAB

-55 ~ +85

5o121716041011

10.0 ~ 11.0

46

1.2

0.6

TAB

-55 ~ +85

5o121716041013

10.0 ~ 13.0

40

1.25

1

TAB

-55 ~ +85

5o121716041015

10.0 ~ 15.0

36

1.35

1

TAB

-55 ~ +85

5o12171604115185

11.5 ~ 18.5

32

1.45

1.4

TAB

-55 ~ +85

5o121716041218

12.0 ~ 18.0

36

1.35

1.2

TAB

-55 ~ +85

5o121716041375145

13.75 ~ 14.5

46

1.2

0.6

TAB

-55 ~ +85

5o12171604138178

13.8 ~ 17.8

36

1.3

1

TAB

-55 ~ +85

5o12171604155165

15.5 ~ 16.5

40

1.25

1

TAB

-55 ~ +85

5o121716041618

16.0 ~ 18.0

40

1.25

1.2

TAB

-55 ~ +85

5o121716041820

18.0 ~ 20.0

40

1.25

1.2

TAB

-55 ~ +85

5o12171604192212

19.2 ~ 21.2

36

1.3

1.2

TAB

-55 ~ +85

5o121716042123

21.0 ~ 23.0

36

1.3

1.2

TAB

-55 ~ +85

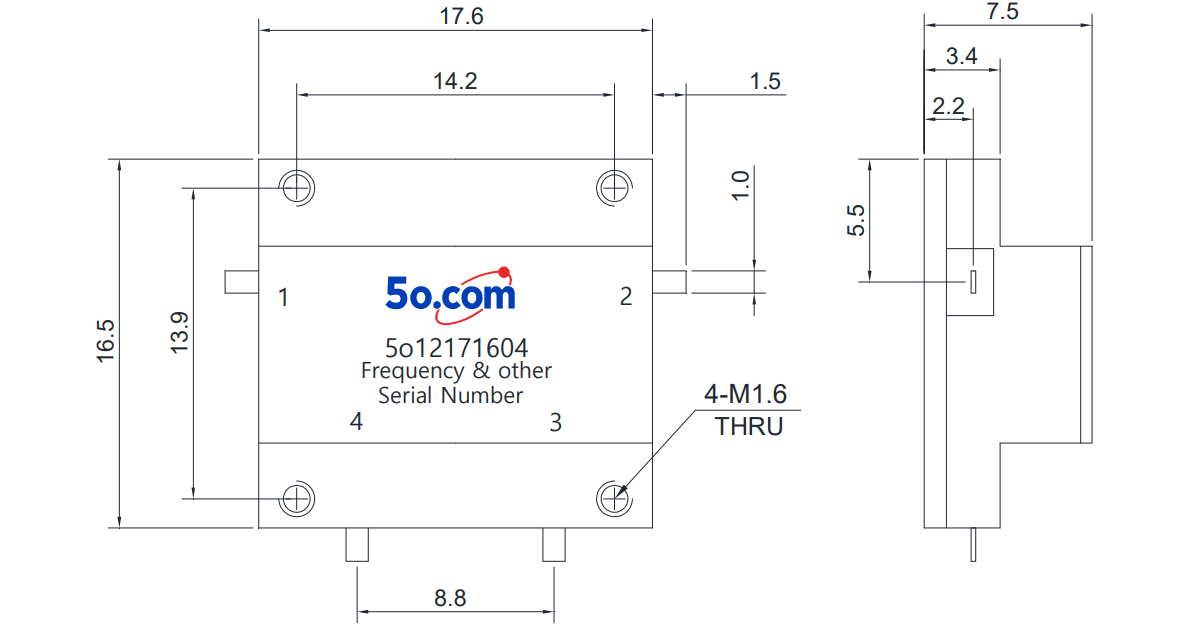

Dimension

17.6*16.5*7.5mm

Impedance

50Ω

Forward Power

60W

Connector   Type

TAB

Reverse   Power

60W

Storage Temperature

-55~+125℃
