    4 Port Dual Junction Drop in Circulator 130 ~ 900MHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part   Number

    Frequency   Range (MHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion   Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o121125604145150

    136 ~ 150

    36

    1.3

    1

    TAB

    -10 ~ +60

    5o121125604150155

    150 ~ 155

    40

    1.25

    1

    TAB

    -10 ~ +70

    5o121125604150170

    150 ~ 170

    36

    1.3

    1.2

    TAB

    -10 ~ +70

    5o121125604168171

    168 ~ 171

    46

    1.2

    0.8

    TAB

    -30 ~ +70

    5o121125604170200

    170 ~ 200

    36

    1.3

    1.4

    TAB

    -30 ~ +70

    5o121125604180220

    180 ~ 220

    36

    1.3

    1

    TAB

    -30 ~ +70

    5o121125604192232

    192 ~ 232

    40

    1.25

    0.8

    TAB

    -30 ~ +70

    5o12112560419752075

    197.5 ~ 207.5

    46

    1.2

    0.8

    TAB

    -30 ~ +70

    5o121125604200250

    200 ~ 250

    40

    1.25

    1.2

    TAB

    -30 ~ +70

    5o121125604230250

    230 ~ 250

    46

    1.2

    0.6

    TAB

    -30 ~ +70

    5o121125604250300

    250 ~ 300

    40

    1.25

    0.8

    TAB

    -30 ~ +70

    5o121125604500750

    500 ~ 750

    32

    1.4

    1

    TAB

    -30 ~ +70

    5o121125604600900

    600 ~ 900

    34

    1.35

    1

    TAB

    -30 ~ +70

    Basic Specifications

    Dimension

    112*56*15mm

    Impedance

    50Ω

    Forward Power

    300W

    Connector   Type

    TAB

    Reverse   Power

    300W

    Storage Temperature

    -55~+125℃

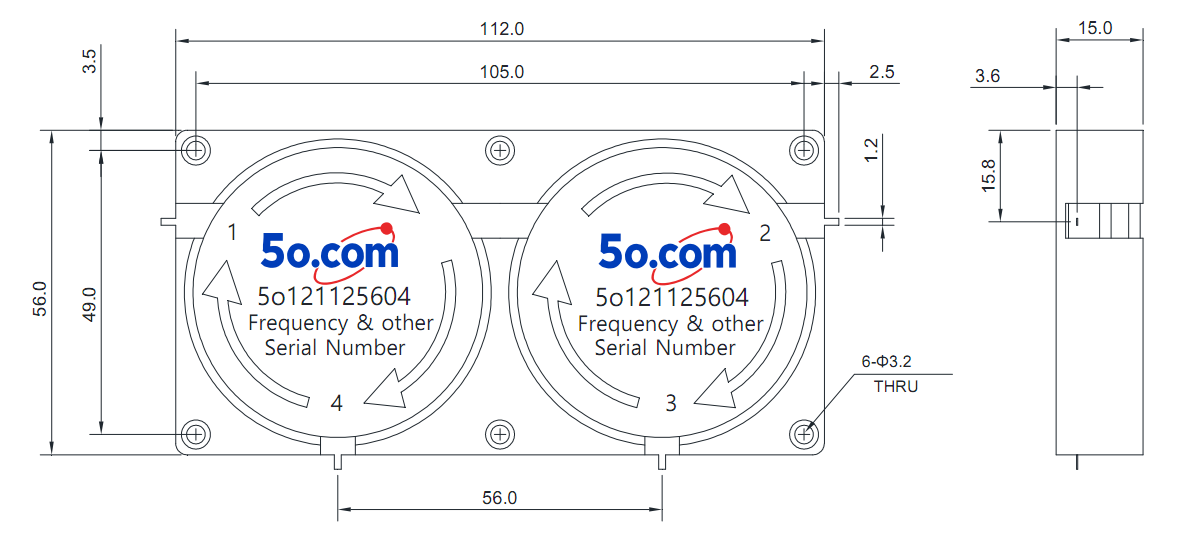

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆It can be dual junction or multiple for high isolation.

    ◆Installing the embedded isolator/circulator, please use stainless steel or brass screws.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
