Part Number

Frequency Range (MHz)

Isolation
  Min(dB)

VSWR
  Max

Insertion Loss
  Max(dB)

Connector

Type

Temp.(°C)

5o1135380220240

220 ~ 240

18

1.3

0.65

TAB

-20 ~ +65

5o1135380240260

240 ~ 260

18

1.3

0.5

TAB

-20 ~ +65

5o1135380260280

260 ~ 280

20

1.25

0.5

TAB

-20 ~ +65

5o1135380309339

309 ~ 339

20

1.25

0.4

TAB

-20 ~ +65

5o1135380350370

350 ~ 370

21

1.2

0.35

TAB

-20 ~ +65

5o1135380380460

380 ~ 460

18

1.3

0.5

TAB

-20 ~ +65

5o1135380390410

390 ~ 410

23

1.2

0.3

TAB

-30 ~ +70

5o1135380400470

400 ~ 470

20

1.25

0.4

TAB

-30 ~ +70

5o1135380413419

413 ~ 419

30

1.15

0.3

TAB

-30 ~ +70

5o1135380419425

419 ~ 425

30

1.15

0.3

TAB

-30 ~ +70

5o1135380440470

440 ~ 470

23

1.2

0.3

TAB

-30 ~ +70

5o1135380450520

450 ~ 520

20

1.25

0.4

TAB

-20 ~ +65

5o1135380600800

600 ~ 800

19

1.25

0.5

TAB

-20 ~ +65

5o1135380700900

700 ~ 900

20

1.25

0.4

TAB

-30 ~ +70

5o11353807001000

700 ~ 1000

16

1.4

0.6

TAB

-20 ~ +65

5o1135380770860

770 ~ 860

23

1.2

0.3

TAB

-30 ~ +70

5o1135380860872

860 ~ 872

30

1.15

0.25

TAB

-20 ~ +65

5o1135380900930

900 ~ 930

30

1.15

0.2

TAB

-40 ~ +85

5o113538010001300

1000 ~   1300

20

1.25

0.4

TAB

-30 ~ +70

5o113538011001700

1100 ~ 1700

15

1.45

0.5

TAB

-30 ~ +70

5o113538012961298

1296 ~ 1298

30

1.15

0.2

TAB

-30 ~ +70

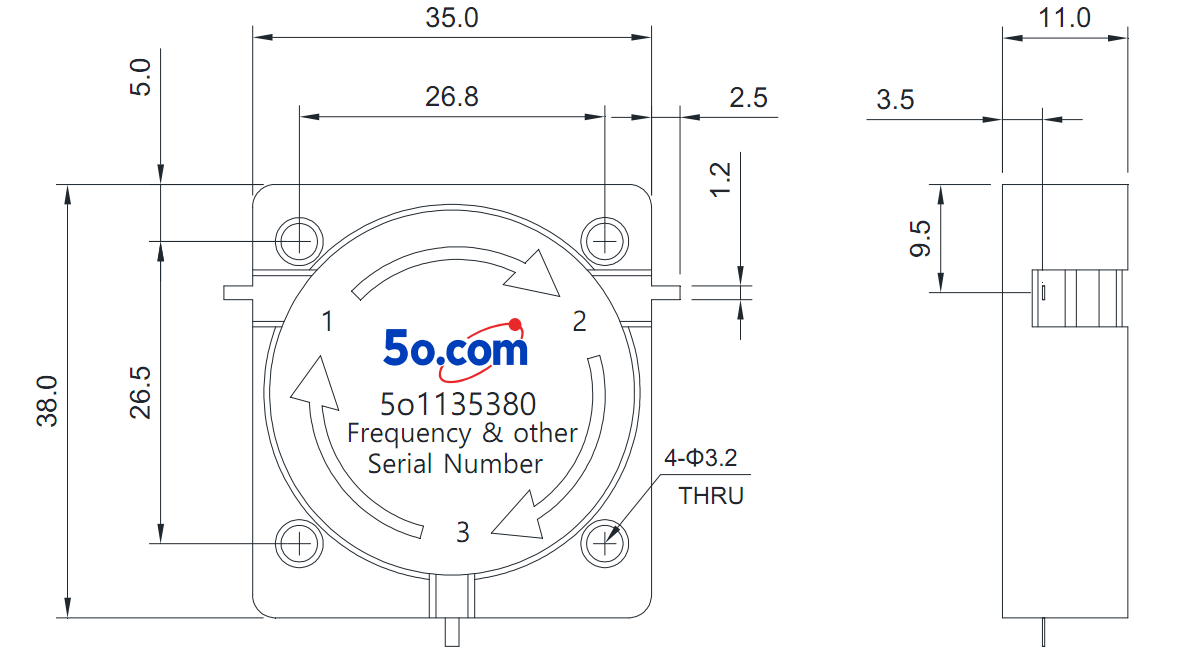

Dimension

35*38*11mm

Impedance

50Ω

Forward Power

300W

Operating Temperature

-40 ~ +85℃

Reverse Power

300W

Storage Temperature

-55~+125℃
