    Drop in Circulator 200 ~ 3600MHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o1125250210220

    210 ~ 220

    18

    1.3

    0.6

    TAB

    -40 ~ +85

    5o1125250220230

    220 ~ 230

    18

    1.3

    0.5

    TAB

    -40 ~ +85

    5o1125250250270

    250 ~ 270

    18

    1.3

    0.5

    TAB

    -40 ~ +85

    5o1125250300320

    300 ~ 320

    20

    1.25

    0.5

    TAB

    -40 ~ +85

    5o1125250350370

    350 ~ 370

    20

    1.25

    0.4

    TAB

    -40 ~ +85

    5o1125250380460

    380 ~ 460

    17

    1.35

    0.5

    TAB

    -40 ~ +85

    5o1125250400470

    400 ~ 470

    18

    1.3

    0.5

    TAB

    -40 ~ +85

    5o1125250410425

    410 ~ 425

    25

    1.15

    0.3

    TAB

    -40 ~ +85

    5o1125250430470

    430 ~ 470

    20

    1.25

    0.4

    TAB

    -40 ~ +85

    5o1125250450512

    450 ~ 512

    20

    1.25

    0.5

    TAB

    -40 ~ +85

    5o1125250490510

    490 ~ 510

    25

    1.15

    0.25

    TAB

    -40 ~ +85

    5o1125250600700

    600 ~ 700

    21

    1.2

    0.3

    TAB

    -40 ~ +85

    5o1125250700803

    700 ~ 803

    23

    1.2

    0.3

    TAB

    -40 ~ +85

    5o11252508001000

    800 ~ 1000

    19

    1.25

    0.4

    TAB

    -40 ~ +85

    5o1125250860960

    860 ~ 960

    23

    1.25

    0.3

    TAB

    -40 ~ +85

    5o1125250869894

    869 ~ 894

    25

    1.15

    0.2

    TAB

    -40 ~ +85

    5o1125250925960

    925 ~ 960

    25

    1.15

    0.2

    TAB

    -40 ~ +85

    5o11252509501250

    950 ~ 1250

    18

    1.3

    0.5

    TAB

    -40 ~ +85

    5o112525011501650

    1150 ~   1650

    15

    1.45

    0.5

    TAB

    -40 ~ +85

    5o112525012001400

    1200 ~ 1400

    23

    1.2

    0.3

    TAB

    -40 ~ +85

    5o112525013001800

    1300 ~ 1800

    16

    1.4

    0.5

    TAB

    -40 ~ +85

    5o112525015001700

    1500 ~ 1700

    23

    1.2

    0.3

    TAB

    -40 ~ +85

    5o112525017102170

    1710 ~ 2170

    20

    1.25

    0.4

    TAB

    -40 ~ +85

    5o112525018051880

    1805 ~ 1880

    25

    1.15

    0.2

    TAB

    -40 ~ +85

    5o112525019201990

    1920 ~ 1990

    25

    1.15

    0.2

    TAB

    -40 ~ +85

    5o112525020002500

    2000 ~ 2500

    20

    1.25

    0.5

    TAB

    -40 ~ +85

    5o112525023002500

    2300 ~ 2500

    25

    1.15

    0.25

    TAB

    -40 ~ +85

    5o112525023002700

    2300 ~ 2700

    23

    1.2

    0.3

    TAB

    -40 ~ +85



    5o112525024002600

    2400 ~ 2600

    25

    1.15

    0.25

    TAB

    -40 ~ +85

    5o112525024962690

    2496 ~ 2690

    25

    1.15

    0.25

    TAB

    -40 ~ +85

    5o112525025002700

    2500 ~ 2700

    25

    1.15

    0.25

    TAB

    -40 ~ +85

    5o112525027003100

    2700 ~ 3100

    23

    1.2

    0.25

    TAB

    -40 ~ +85

    5o112525030003600

    3000 ~ 3600

    20

    1.25

    0.3

    TAB

    -40 ~ +85

     Basic Specifications

    Dimension

    25.4*25.4*10.5mm

    Impedance

    50Ω

    Forward Power

    200W

    Operating Temperature

    -40 ~ +85℃

    Reverse Power

    200W

    Storage Temperature

    -55~+125℃

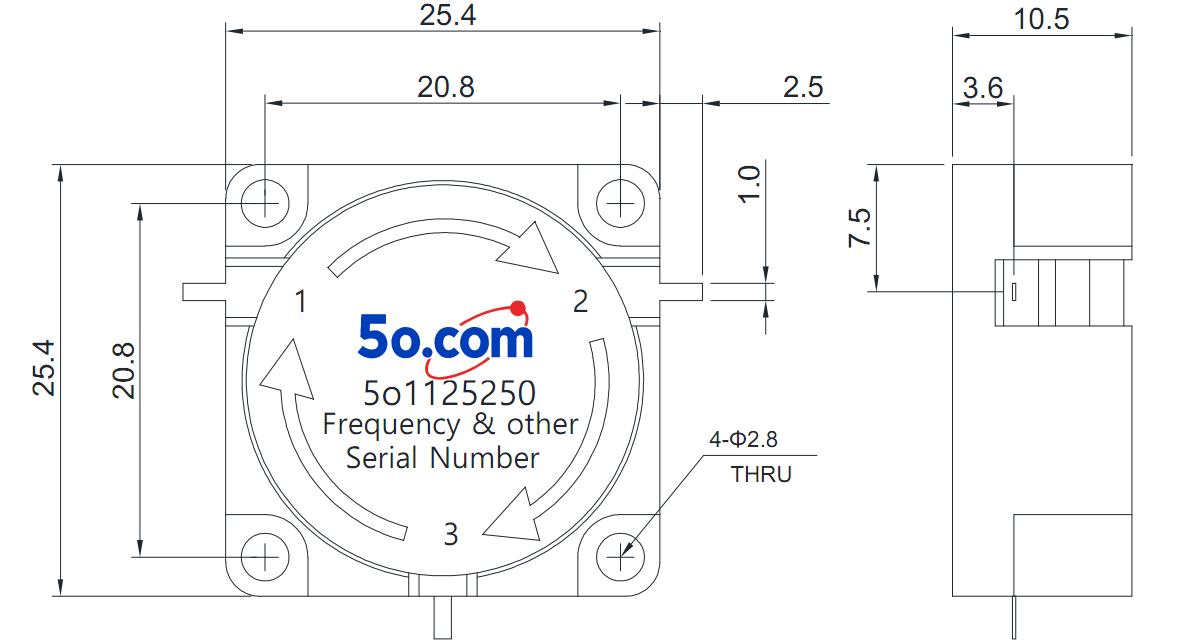

    Overall Dimension(mm)


    Instructions                              Tolerances: ±2% unless otherwise stated.

    ◆It can be dual junction or multiple for high isolation.

    ◆Installing the embedded isolator/circulator, please use stainless steel or brass screws.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
