    Drop in Circulator 17.0 ~ 40.0GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

     RF Characteristics

    Part Number

    Frequency Range (GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o1113180177212

    17.7 ~ 21.2

    18

    1.3

    0.6

    TAB

    -40 ~ +85

    5o11131801822

    18.0 ~ 22.0

    18

    1.3

    0.6

    TAB

    -40 ~ +85

    5o11131802123

    21.0 ~ 23.0

    20

    1.25

    0.5

    TAB

    -40 ~ +85

    5o11131802224

    22.0 ~ 24.0

    20

    1.25

    0.5

    TAB

    -40 ~ +85

    5o11131802325

    23.0 ~ 25.0

    20

    1.25

    0.5

    TAB

    -40 ~ +85

    5o11131802426

    24.0 ~ 26.0

    20

    1.25

    0.5

    TAB

    -40 ~ +85

    5o11131802425275

    24.25 ~ 27.5

    18

    1.3

    0.6

    TAB

    -40 ~ +85

    5o11131802527

    25.0 ~ 27.0

    20

    1.25

    0.5

    TAB

    -40 ~ +85

    5o11131802729

    27.0 ~ 29.0

    20

    1.25

    0.5

    TAB

    -40 ~ +85

    5o11131802731

    27.0 ~ 31.0

    16

    1.4

    1.1

    TAB

    -40 ~ +85

    5o11131803337

    33.0 ~ 37.0

    16

    1.4

    1.2

    TAB

    -40 ~ +85

    5o11131803436

    34.0 ~ 36.0

    16

    1.4

    1.2

    TAB

    -40 ~ +85

    Basic Specifications

    Dimension

    13*18*12.8 mm

    Impedance

    50Ω

    Forward Power

    30W

    Operating Temperature

    -40 ~ +85℃

    Reverse Power

    30W

    Storage Temperature

    -55~+125℃

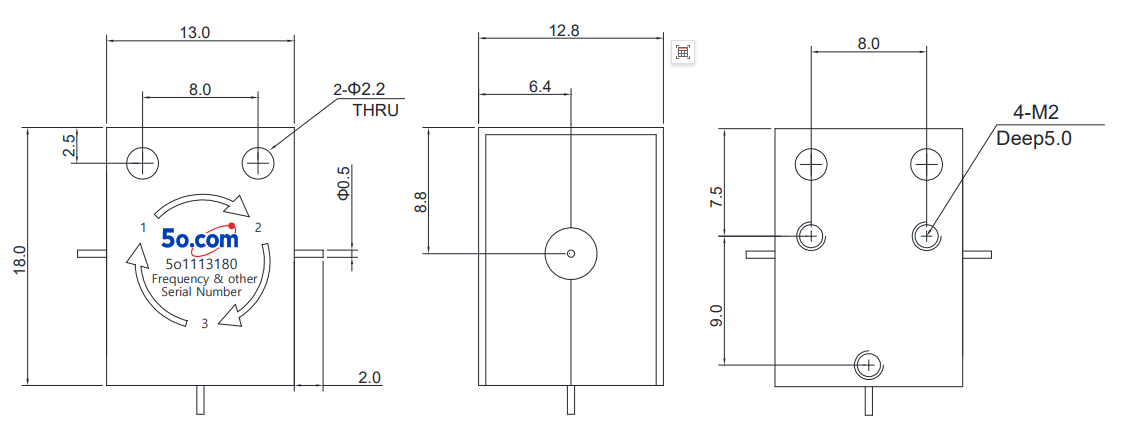

    Overall Dimension(mm)


    Instructions                              Tolerances: ±2% unless otherwise stated.

    ◆It can be dual junction or multiple for high isolation.

    ◆Installing the embedded isolator/circulator, please use stainless steel or brass screws.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
