    Coaxial Circulator 1.0 ~ 2.0GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.


    RF Characteristics

    Part Number

    Frequency Range
          (GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    5o106466012NK

    1.0 ~ 2.0

    17

    1.4

    0.6

    N Female

    5o106466012SK

    1.0 ~ 2.0

    17

    1.4

    0.6

    SMA Female

    Basic Specifications

    Dimension

    64*66*26mm

    Impedance

    50Ω

    Forward Power

    100W

    Operating Temperature

    +10 ~ +70℃

    Reverse Power

    100W

    Storage Temperature

    -55 ~+125℃

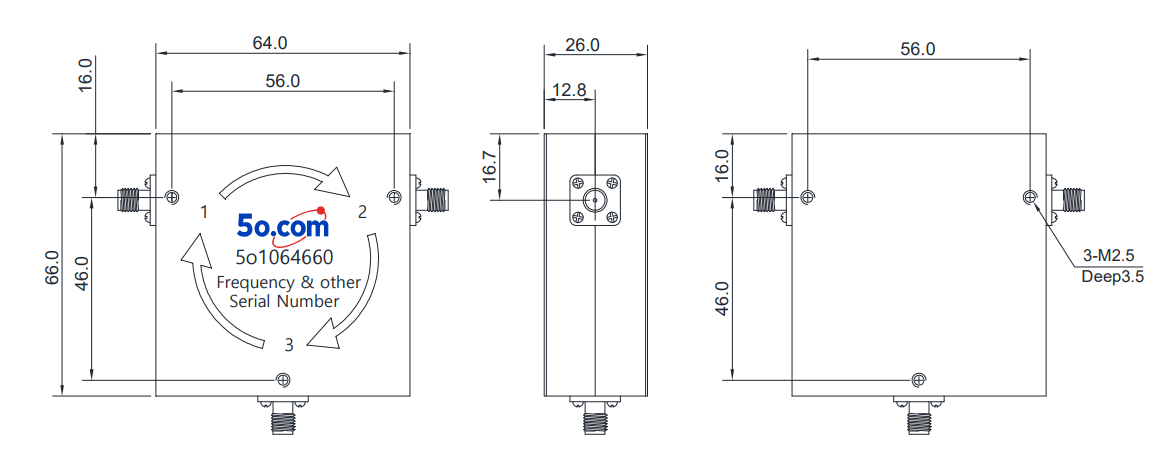

    5o1064660.pngOverall Dimension(mm, Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (SMA Male/Female, N Male/ Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
