    Coaxial Circulator 225 ~ 400MHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o1060605225400NK

    225 ~ 400

    18

    1.3

    0.8

    N Female

    0 ~ +60

    16

    1.4

    1.0

    -40 ~ +85

    5o1060605225400SK

    225 ~ 400

    18

    1.3

    0.8

    SMA Female

    0 ~ +60

    16

    1.4

    1.0

    -40 ~ +85

    Basic Specifications

    Dimension

    60*60*28mm

    Impedance

    50Ω

    Forward Power

    160W/100W

    Operating Temperature

    -40 ~ +80℃

    Reverse Power

    160W/100W

    Storage Temperature

    -55~+125℃

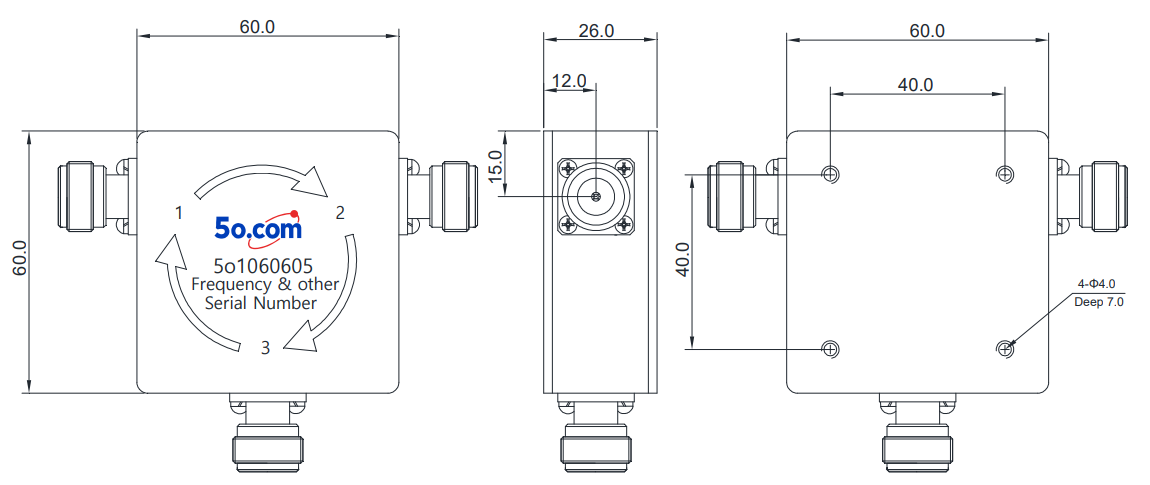

    Overall Dimension(mm)


    Instructions                              Tolerances: ±2% unless otherwise stated.

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (SMA Male/Female, N Male/ Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
