    Coaxial Circulator 45 ~ 270MHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.


    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o10606004550SK

    45 ~ 50

    18

    1.3

    1.5

    SMA Female

    -10 ~ +65

    5o10606004555SK

    45 ~ 55

    18

    1.3

    1.8

    SMA Female

    -10 ~ +65

    5o10606005075SK

    50 ~ 75

    18

    1.3

    1.8

    SMA Female

    -10 ~ +65

    5o10606005575SK

    55 ~ 75

    18

    1.3

    1.2

    SMA Female

    -10 ~ +65

    5o10606006065NK

    60 ~ 65

    20

    1.25

    1

    N Female

    -10 ~ +65

    5o10606006570NK

    65 ~ 70

    20

    1.25

    1

    N Female

    -10 ~ +65

    5o10606006888SK

    68 ~ 88

    18

    1.3

    1.3

    SMA Female

    -20 ~ +65

    5o10606007085SK

    70 ~ 85

    20

    1.25

    0.8

    SMA Female

    -20 ~ +65

    5o10606007090NK

    70 ~ 90

    20

    1.25

    1

    N Female

    -20 ~ +65

    5o106060080120SK

    80 ~ 120

    18

    1.3

    1

    SMA Female

    0 ~ +65

    5o106060085135NK

    85 ~ 135

    18

    1.3

    1.2

    N Female

    -10 ~ +65

    5o106060087108NK

    87 ~ 108

    20

    1.25

    0.6

    N Female

    -20 ~ +65

    5o106060087108NKP200

    87 ~ 108

    20

    1.25

    0.6

    N Female

    -20 ~ +65

    5o106060088138NK

    88 ~ 138

    18

    1.3

    1

    N Female

    -10 ~ +65

    5o1060600100130NK

    100 ~ 130

    20

    1.25

    0.6

    N Female

    -30 ~ +70

    5o1060600100150SK

    100 ~ 150

    18

    1.3

    1

    SMA Female

    -10 ~ +65

    5o1060600108118NK

    108 ~ 118

    23

    1.2

    0.5

    N Female

    -30 ~ +70

    5o1060600108118NKP200

    108 ~ 118

    23

    1.2

    0.5

    N Female

    -30 ~ +70

    5o1060600112156NK

    112 ~ 156

    20

    1.25

    0.8

    N Female

    -30 ~ +70

    5o1060600118137NK

    118 ~ 137

    23

    1.2

    0.5

    N Female

    -30 ~ +70

    5o1060600118137NKP200

    118 ~ 137

    23

    1.2

    0.5

    N Female

    -30 ~ +70

    5o1060600130180SK

    130 ~ 180

    20

    1.25

    0.6

    SMA Female

    -30 ~ +70

    5o1060600136174SK

    136 ~ 174

    22

    1.2

    0.5

    SMA Female

    -30 ~ +70

    5o1060600136174NKP200

    136 ~ 174

    22

    1.2

    0.5

    N Female

    -30 ~ +70

    5o1060600148174NKP150

    148 ~ 174

    25

    1.15

    0.5

    N Female

    -30 ~ +70

    5o1060600150200NK

    150 ~ 200

    20

    1.25

    0.6

    N Female

    -30 ~ +70

    5o1060600150225SK

    150 ~ 225

    18

    1.3

    0.9

    SMA Female

    -30 ~ +70

    5o1060600170200NK

    170 ~ 200

    20

    1.25

    0.5

    N Female

    -30 ~ +70

    5o1060600170200NKP200

    170 ~ 200

    20

    1.25

    0.5

    N Female

    -30 ~ +70

    5o1060600180220SJSKSK

    180 ~ 220

    20

    1.25

    0.5

    SMA Male to SMA Female to SMA   Female

    -30 ~ +70

    5o1060600200270NK

    200 ~ 270

    20

    1.25

    0.7

    N Female

    -30 ~ +70

    Basic Specifications

    Dimension

    60*60*27.5mm

    Forward Power

    200W/100W

    Reverse Power

    200W/100W

    Connector Type

    SMA (Male/Female), N(Male/Female)

    Storage Temperature

    -55℃~+125℃

    Impedance

    50Ω

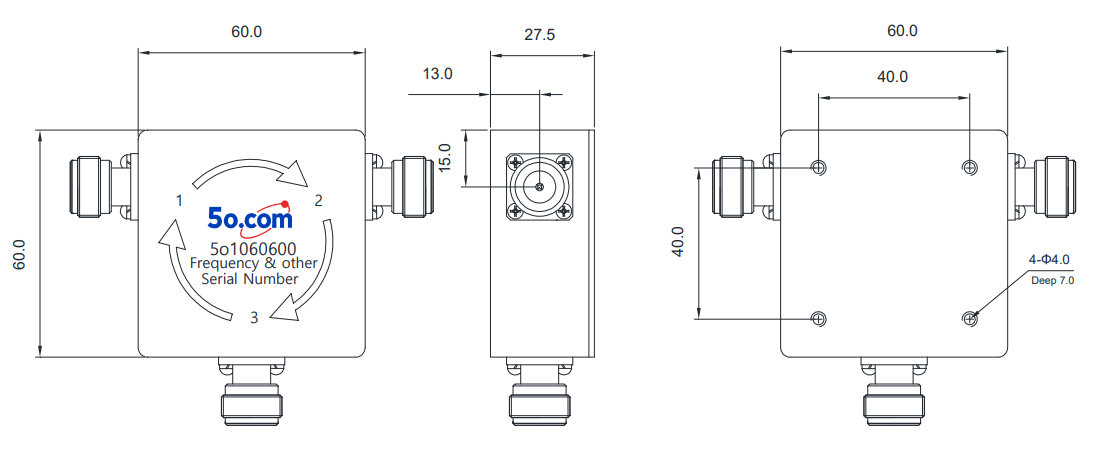

    Overall Dimension(mm)


    Instructions                              Tolerances: ±2% unless otherwise stated.

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (SMA Male/Female, N Male/ Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
