    700 ~ 2500MHz Coaxial Circulator

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o1032320800900NK

    800   ~ 900

    23

    1.2

    0.3

    N Female

    -30   ~ +70

    5o1032320860960NK

    860   ~ 960

    23

    1.2

    0.3

    N Female

    -30   ~ +70

    5o10323209601215NK

    960   ~ 1215

    20

    1.25

    0.4

    N Female

    -30   ~ +70

    5o103232014501700SK

    1450   ~ 1700

    20

    1.25

    0.4

    SMA Female

    -30   ~ +70

    5o103232015002000SK

    1500   ~ 2000

    18

    1.3

    0.5

    SMA Female

    -30   ~ +70

    5o103232016002000NK

    1600   ~ 2000

    20

    1.25

    0.4

    N Female

    -20   ~ +70

    5o103232017002200SK

    1700   ~ 2200

    21

    1.25

    0.4

    SMA Female

    -30   ~ +70

    5o103232017002400SK

    1700   ~ 2400

    18

    1.3

    0.6

    SMA Female

    -40   ~ +70

    5o103232018002400SK

    1800   ~ 2400

    18

    1.3

    0.5

    SMA Female

    -40   ~ +85

    5o103232020002500SK

    2000   ~ 2500

    20

    1.25

    0.4

    SMA Female

    -40   ~ +85

    Basic Specifications

    Dimension

    32*32*18mm

    Forward Power

    200W/100W

    Reverse Power

    100W

    Connector Type

    SMA(Male/Female), N(Male/Female)

    Storage Temperature

    -55℃~+125℃

    Impedance

    50Ω

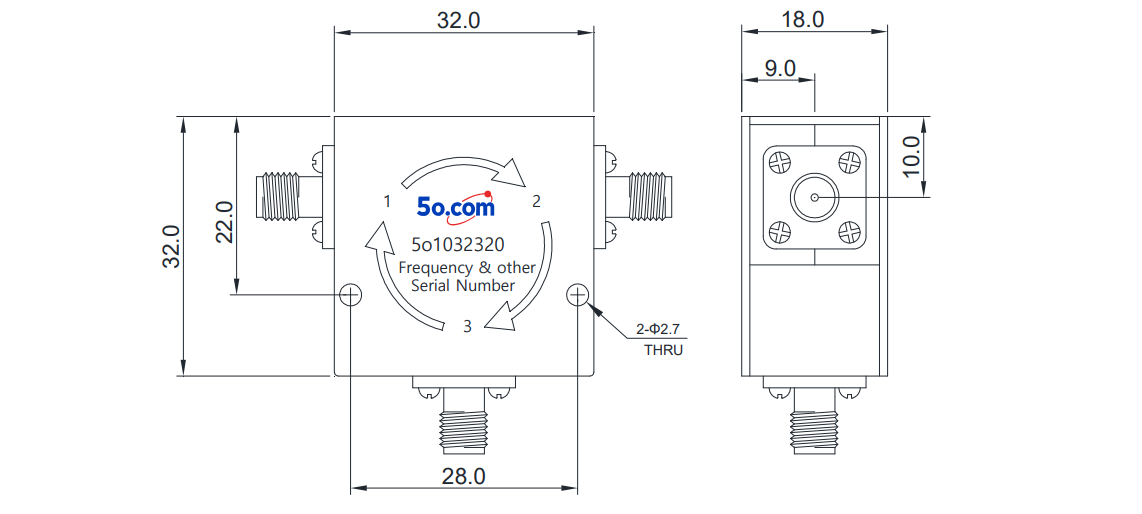

    Overall Dimension(mm)




    Instructions                              Tolerances: ±2% unless otherwise stated.

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (SMA Male/ Female, N Male/ Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
